Melbye

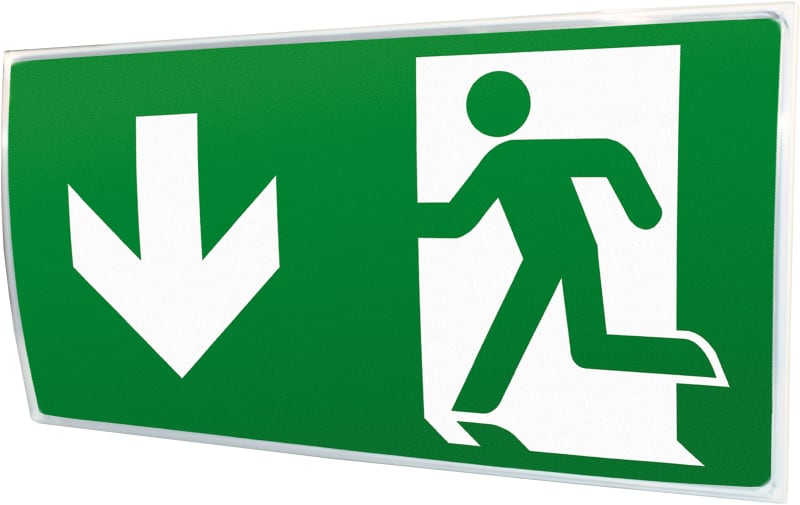

KCW013SC LED Self-test (3T)
Part number6685004HS code9405.40
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye 6685004 emergency lighting: LED escape-route / exit sign luminaire with NiCd battery and 3 hours backup, IP54, viewing distance 30 m, all pictograms included.
Technical Specifications
- Manufacturer part number (MPN)
- 6685004
- Sales unit
- pcs
- El-nummer (NO)
- 6685004
- ETIM class
- SC001957
- Mounting method
- Wall surface mounting/ceiling surface mounting
- Function
- Escape route lighting/signage
- Suitable for labelling type
- Insert sheet/plate
- With pictogram
- Yes
- Monitoring equipment
- Automatic self test
- With remote switch connection
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- NiMH
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Number of lighting heads
- 1
- Housing material
- Plastic
- Housing colour
- White
- Material cover
- Plastic, transparent
- Voltage type
- AC
- Nominal voltage
- 220–240 V
- LED nominal current at constant current
- 0.05 mA
- Type of control gear
- Not required
- Light distributor
- None
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Degree of protection (IP)
- IP54
- Protection class according to IEC 61140
- II
- Rated ambient temperature according to IEC 62722-2-1
- 0–40 °C
- Recognition distance
- 30 m
- Nominal operation time
- 3 h
- Width
- 340 mm
- Height/depth
- 60 mm
- Length
- 170 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Emergency function monitoring system
- Automatic self test
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9405.40
Cross References
- 7070701218496
- El-nr 6685004
Product Documentation
Document preview: KCW013SC LED Self-test (3T) (6685004) — Specification sheet
More from Melbye
Melbye

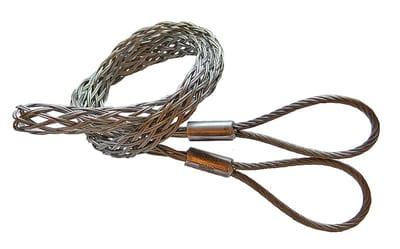

Pulling grip 50-65mm
8855144
Melbye

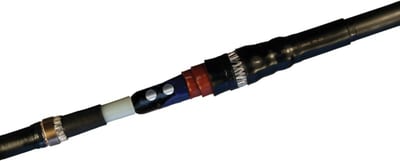

1-L varmkr. Joint with sleeve (CHMSV N24 1695)
Melbye

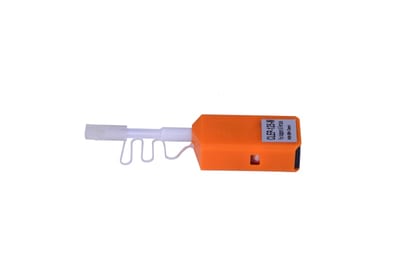

Rensepenn 1,25mm (6923006)
Melbye

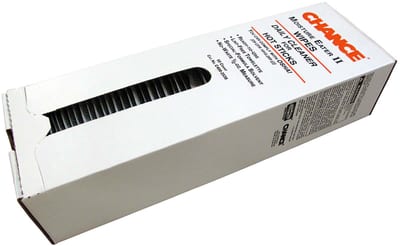

Fuktfjernerserviett
C400-2538
Melbye
Melbye REU 50 Round Flexible Earthing Braid 50 mm² with EPDM Insulation, per Metre
Melbye
ISO.SWITCH Moduloppbygget 160A
ISO-LTSM-003-2
Melbye

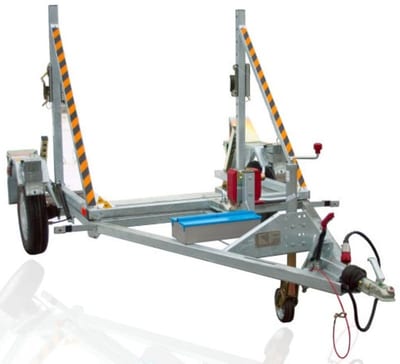

Cable trolley JKS 1500
250009
Melbye

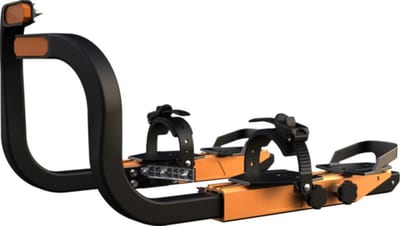

Pole Climbers Gekko (8802500)
