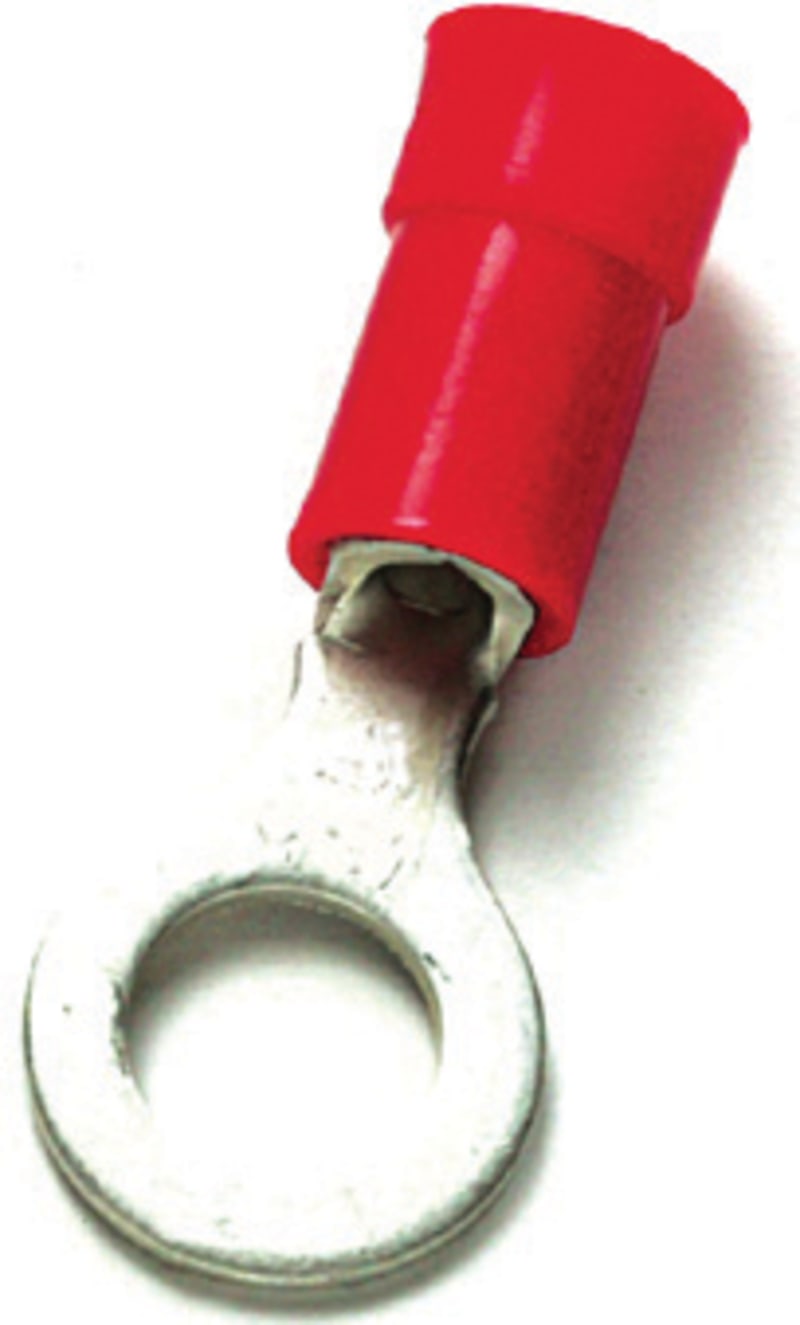

Melbye A1565R Insulated Ring Terminal, 1.5 mm² M6 (Red)
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye A1565R — pre-insulated ring (eye) terminal for a 0.5–1.5 mm² copper conductor, M6 stud. Red nylon-insulated barrel over a tin-plated copper crimp sleeve; crimped to stranded or fine-stranded copper conductors (IEC 60228) for terminal-block, contactor and distribution-equipment terminations.
Technical Specifications
- Product type
- Pre-insulated ring (eye) terminal
- Conductor cross-section
- 0.5–1.5 mm²
- Stud size
- M6
- Insulation colour code
- Red
- Material
- Tin-plated copper, nylon-insulated sleeve
- Manufacturer part number (MPN)
- A1565R
- EAN / GTIN
- 7070701016528
- HS code
- 8536.90
- Sales unit
- pcs
- Surface protection
- Tinned
- Insulation
- Polyvinyl chloride (PVC)
- Total length
- 28 mm
- Max. current (Imax)
- 10 A
- Flange shape
- Ring shape
- For pull protected connections
- No
- Reel/roll packaging
- No
- Colour insulation
- Red
- Bolt dimension (metric)
- 6
- AWG-range
- 16–20
- Nominal cross section
- 0.5–1.5 mm²
- Suitable for fine strand conductors
- Yes
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- According to DIN
- No
- Country of origin
- Italy
Standards & Compliance
- Material
- Tin-plated copper, nylon-insulated sleeve
- HS Code
- 8536.90
Cross References
- EAN 7070701016528
- SAP 1000085885
- Code 8577893
