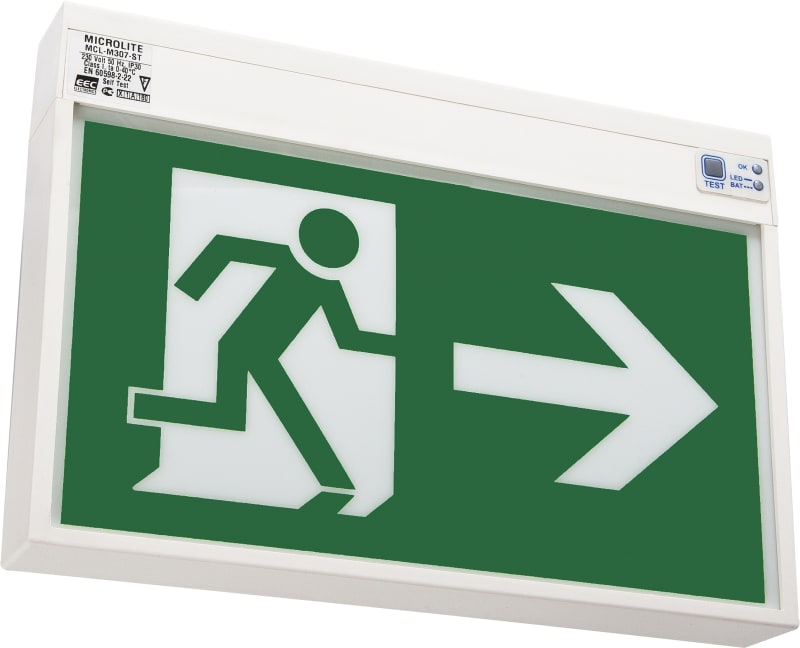

Microled Standard/1T/4XPIKTO (6685021)

Melbye 6685021 emergency lighting: LED exit sign, standard, viewing distance 30 metres. All pictograms are included. NiMH battery with 1 h backup.

Manufacturer part number (MPN)

6685021

Sales unit

pcs

Package quantity

34 pcs

Mounting method

Wall surface mounting/ceiling surface mounting

Function

Escape route signage

Suitable for labelling type

Insert sheet/plate

Type of indicator

Single/double-sided

With pictogram

Yes

Monitoring equipment

None

With remote switch connection

No

Power supply system

Peripheral (individual battery)

Battery technology

NiMH

Lamp type

LED not exchangeable

With light source

Yes

Suitable for number of light sources

1

Lamp holder

None

Number of lighting heads

1

Housing material

Plastic

Housing colour

White

Material cover

Plastic, transparent

Voltage type

AC

Nominal voltage

220–240 V

LED nominal current at constant current

0.05 mA

Type of control gear

Not required

Light distributor

None

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Degree of protection (IP)

IP30

Protection class according to IEC 61140

II

Rated ambient temperature according to IEC 62722-2-1

0–40 °C

Recognition distance

30 m

Nominal operation time

3 h

Width

290 mm

Height/depth

40 mm

Length

200 mm

Type of wiring

Suitable for loop-through wiring

Number of poles

2

Conductor cross section

2.5 mm²

Connection type

Plug-in connection

Emergency power supply system

Peripheral (individual battery)

Emergency function monitoring system

None

Country of origin

Türkiye

HS Code

9405.60

• 7070701218526
