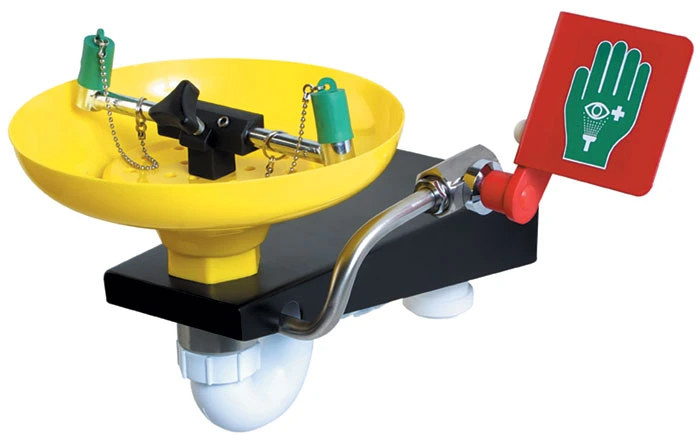

Wall Mount, Open ABS Bowl, Hughes Eye/Face Wash - 75GEW

This wall-mounted eye/face wash with open ABS plastic bowl is suitable for use in all applications not subject to the possibility of freezing or overheating. The system features a specially designed valve that includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Low operating torque offers reliable, easy on/off operation. Includes an inspection record tag for recording service and test history.

Manufacturer part number (MPN)

75GEW Brand: Justrite Category: Tools Net Weight, lbs: 8.8 Net Weight, kg: 4 Dimensions, Exterior: 11.6" H x 16.9" W x 15.7" D (295mm H x 429mm W x 429mm D) UL Classified to ANSI Z358.1-2014: Yes Water Inlet Size NPT: 1/2 in (F) minimum Operating Pressure: 2 bar g, 29 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Eye/Face Liters/min: 11.4 Water Flow Eye/Face US Gal/min: 3 material Specifications: Eye/facewash diffusers: Chrome plated brass with stainless steel mesh. Operating Valve material: 316L Stainless Eye/Face Wash Bowl material: Yellow ABS Plastic Mounting Type: Wall Activation Method: Push Plate Eye/Face Wash Bowl Interior Dimensions: 9.75" W x 9.75" D minimum Ambient Temperature, °F: 41 minimum Ambient Temperature, °C: 5 Maximum Ambient Temperature, °F: 95 Maximum Ambient Temperature, °C: 35 UPC: 805042000014

HS Code

8424.89

• OEM-URL https://www.justrite.com/eyeface-wash-wall-mount-open-abs-bowl-75gew
