Pedestal Mount, Open ABS Bowl, Hughes Eye/Face Wash, Galvanized Pipe - 75GP

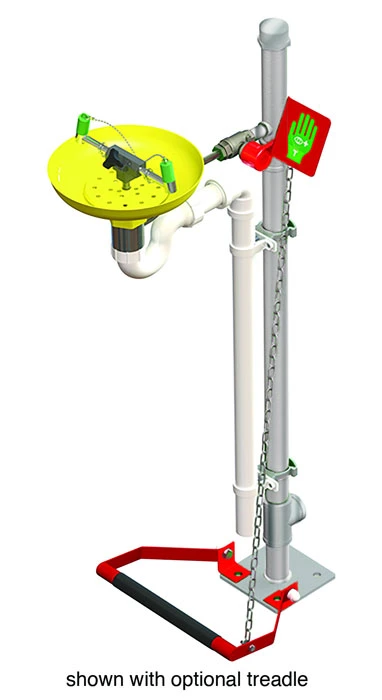

Pedestal-mounted, open ABS plastic bowl eye/face wash unit, designed at ANSI-compliant height, is generally located in open areas away from walls. Suitable for use in all applications not subject to the possibility of freezing or overheating. The system features a specially designed valve that includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Low operating torque offers reliable, easy on/off operation. Solid construction using galvanized mild

Manufacturer part number (MPN)

75GP Brand: Justrite Category: Tools Net Weight, lbs: 22 Net Weight, kg: 10 Dimensions, Exterior: 45.5" H x 12.4" W x 21.2" D (1156mm H x 314mm W x 314mm D) UL Classified to ANSI Z358.1-2014: Yes Water Inlet Size NPT: 1-1/4 in (F) minimum Operating Pressure: 2 bar g, 29 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Eye/Face Liters/min: 11.4 Water Flow Eye/Face US Gal/min: 3 material Specifications: Eye/facewash diffusers: Chrome plated brass with stainless steel mesh. Operating Valve material: 316L Stainless Eye/Face Wash Bowl material: Yellow ABS Plastic Mounting Type: Pedestal Pipework material: Galvanized Steel Activation Method: Push Plate Eye/Face Wash Bowl Interior Dimensions: 9.75" W x 9.75" D minimum Ambient Temperature, °F: 41 minimum Ambient Temperature, °C: 5 Maximum Ambient Temperature, °F: 95 Maximum Ambient Temperature, °C: 35 UPC: 805042000021

HS Code

8424.89
