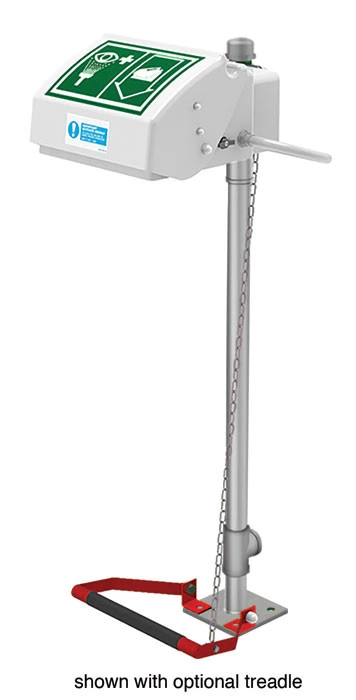

Pedestal Mount, Closed ABS Bowl, Hughes Eye/Face Wash, Stainless Steel Pipe - 45GSP

Wall-mounted eye/face wash with high, ANSI-compliant flow rate is suitable for use in all applications not subject to the possibility of freezing or overheating. Solid construction using stainless steel pipework for added improved corrosion resistance. The eye/face wash incorporates an integral lid connected to the water valve for automatic operation—activate by simply pulling down the lid. Easy-to-reach flow controller valve positioned on side of bowl adjusts to suit the severity of the accident

Manufacturer part number (MPN)

45GSP Brand: Justrite Category: Tools Color: Green Net Weight, lbs: 22 Net Weight, kg: 10 Dimensions, Exterior: 47" H x 19.8" W x 18.3" D (1194mm H x 502mm W x 502mm D) UL Classified to ANSI Z358.1-2014: Yes Water Inlet Size NPT: 1-1/4 IN (F) minimum Operating Pressure: 2 bar g, 29 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Eye/Face Liters/min: 11.4 Water Flow Eye/Face US Gal/min: 3 material Specifications: Eye/facewash diffusers: Chrome plated brass with stainless steel mesh. Operating Valve material: Chrome plated brass Eye/Face Wash Bowl material: White Acrylic-Capped ABS Plastic Mounting Type: Pedestal Pipework material: Stainless Steel Activation Method: Pull Down on Lid Eye/Face Wash Bowl Interior Dimensions: 9.5" W x 8" D minimum Ambient Temperature, °F: 41 minimum Ambient Temperature, °C: 5 Maximum Ambient Temperature, °F: 95 Maximum Ambient Temperature, °C: 35 UPC: 805042000090

HS Code

8424.89

• OEM-URL https://www.justrite.com/eyeface-wash-pedestal-mount-closed-abs-bowl-stainless-steel-pipe-45gsp
