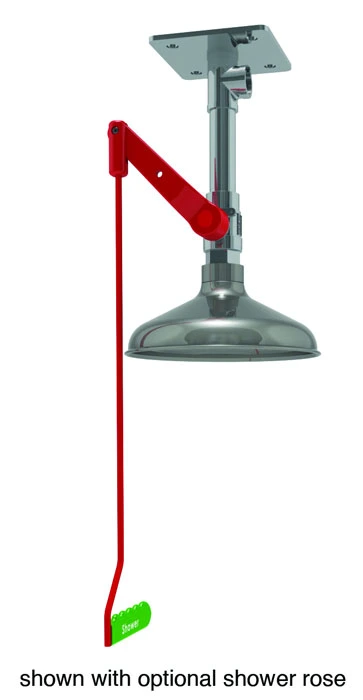

Ceiling Mount, Hughes Drench Shower, Galvanized Pipe - 23GV

Ideal in factories, schools, laboratories or other indoor environments where space is at a premium, use this ceiling mounted shower for treatment of full-body chemical exposure. Suitable for use in all applications that do not require an eye wash and are not subject to the possibility of freezing or overheating.The system features a specially designed valve that includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Low operating torque offers reli

Manufacturer part number (MPN)

23GV Brand: Justrite Category: Tools Net Weight, lbs: 7.7 Net Weight, kg: 3.5 Dimensions, Exterior: 31.6" H x 8.4" W x 5.9" D (804mm H x 214mm W x 214mm D) UL Classified to ANSI Z358.1-2014: Yes Water Inlet Size NPT: 1 in (F) minimum Operating Pressure: 1.5 bar g, 22 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Shower/Body Liters/min: 76 Water Flow Shower/Body US Gal/min: 20 Operating Valve material: 316L Stainless Mounting Type: Ceiling Pipework material: Galvanized Steel Activation Method: Pull Handle minimum Ambient Temperature, °F: 41 minimum Ambient Temperature, °C: 5 Maximum Ambient Temperature, °F: 95 Maximum Ambient Temperature, °C: 35 UPC: 805042000175

HS Code

8424.89

• OEM-URL https://www.justrite.com/drench-shower-ceiling-mount-galvanized-pipe-23gv
