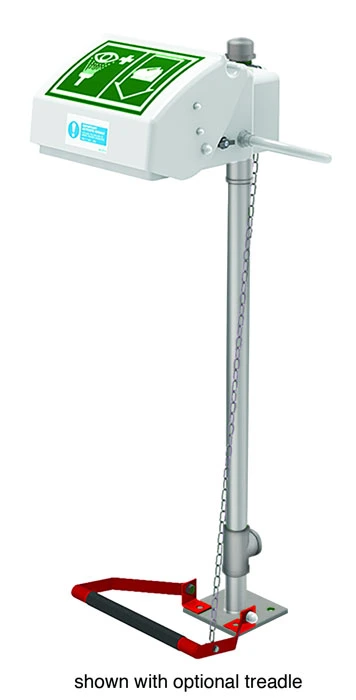

Pedestal Mount, Closed ABS Bowl, Hughes Eye/Face Wash, Galvanized Pipe - 45GP

Wall-mounted eye/face wash with high, ANSI-compliant flow rate is suitable for use in all applications not subject to the possibility of freezing or overheating. Solid construction using galvanized mild steel pipework. The eye/face wash incorporates an integral lid connected to the water valve for automatic operation—activate by simply pulling down the lid. Easy-to-reach flow controller valve positioned on side of bowl adjusts to suit the severity of the accident. Includes an inspection record

Manufacturer part number (MPN)

45GP Brand: Justrite Category: Tools Color: Green Net Weight, lbs: 22 Net Weight, kg: 10 Dimensions, Exterior: 47" H x 19.8" W x 18.3" D (1194mm H x 502mm W x 502mm D) UL Classified to ANSI Z358.1-2014: Yes Water Inlet Size NPT: 1-1/4 IN (F) minimum Operating Pressure: 2 bar g, 29 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Eye/Face Liters/min: 11.4 Water Flow Eye/Face US Gal/min: 3 material Specifications: Eye/facewash diffusers: Chrome plated brass with stainless steel mesh. Operating Valve material: Chrome plated brass Eye/Face Wash Bowl material: White Acrylic-Capped ABS Plastic Mounting Type: Pedestal Pipework material: Galvanized Steel Activation Method: Pull Down on Lid Eye/Face Wash Bowl Interior Dimensions: 9.5" W x 8" D minimum Ambient Temperature, °F: 41 minimum Ambient Temperature, °C: 5 Maximum Ambient Temperature, °F: 95 Maximum Ambient Temperature, °C: 35 UPC: 805042000083

HS Code

8424.89

• OEM-URL https://www.justrite.com/eyeface-wash-pedestal-mount-closed-abs-bowl-galvanized-pipe-45gp
