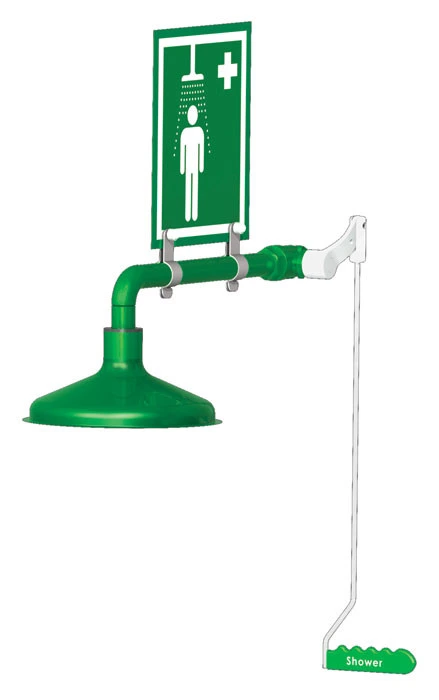

Ring Main Mount, Laboratory Hughes Drench Shower, Stainless Steel Pipe - L23GS

Ideal for laboratories, schools and general light duty indoor use where space is at a premium, this ring main mounted emergency drench shower is suitable for use in applications that do not require an eye wash and are not subject to the possibility of freezing or overheating. The system features a specially designed valve with low operating torque offering reliable, easy on/off operation when emergencies occur. Valve includes an integral, heavy-duty stainless steel stop-plate to handle rough ope

Manufacturer part number (MPN)

L23GS Brand: Justrite Category: Tools Color: Green Net Weight, lbs: 11 Net Weight, kg: 5 Dimensions, Exterior: 35.9" H x 13.1" W x 24.4" D (913mm H x 334mm W x 334mm D) Height Without Sign, inches: 25.1 Height Without Sign, mm: 638 UL Classified to ANSI Z358.1-2014: Yes Water Inlet Size NPT: 1 in (F) minimum Operating Pressure: 1.5 bar g, 22 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Shower/Body Liters/min: 76 Water Flow Shower/Body US Gal/min: 20 material Specifications: Rose: Powder coated stainless steel Operating Valve material: 316L Stainless Mounting Type: Ring Main Pipework material: Stainless Steel Activation Method: Pull Handle Rose Diameter, inches: 11 Rose Diameter, mm: 280 minimum Ambient Temperature, °F: 41 minimum Ambient Temperature, °C: 5 Maximum Ambient Temperature, °F: 95 Maximum Ambient Temperature, °C: 35 UPC: 805042000359

HS Code

8424.89

• OEM-URL https://www.justrite.com/laboratory-drench-shower-ring-main-mount-stainless-steel-pipe-l23gs
