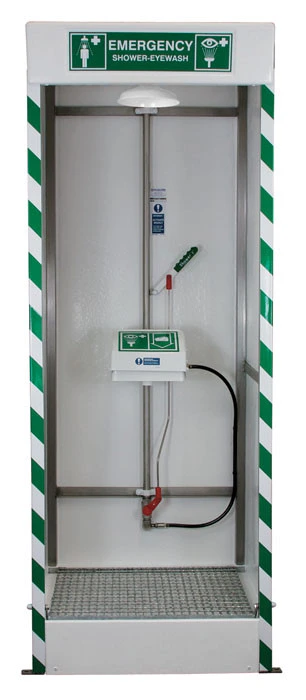

Covered ABS Eye and Face Wash, Hughes Emergency Cubicle Shower - SD32K45G

Designed for locations where space is at a premium or the emergency safety shower needs to be enclosed, this all-in-one ANSI-compliant combination cubicle shower and eye/face wash helps prevent overspray and is activated by hand upon entry. The cubicle shower has a stainless steel hollow section frame enclosed in GRP sheeting with stainless steel pipes for corrosion resistance and extended life. The exterior sheeting includes universal pictogram signs and green and white safety stripes.Mounted o

Manufacturer part number (MPN)

SD32K45G Brand: Justrite Category: Tools Color: White Net Weight, lbs: 255 Net Weight, kg: 116 Dimensions, Exterior: 94.8" H x 40.2" W x 41.3" D (2408mm H x 1021mm W x 1021mm D) Water Inlet Size NPT: 1 in (M) minimum Operating Pressure: 2 bar g, 29 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Shower/Body Liters/min: 76 Water Flow Shower/Body US Gal/min: 20 Water Flow Eye/Face Liters/min: 11.4 Water Flow Eye/Face US Gal/min: 3 Operating Valve material: Shower: 316L Stainless, Eyewash: Chrome plated brass Eye/Face Wash Bowl material: Acrylic-Capped ABS Plastic Mounting Type: Floor Pipework material: Stainless Steel Activation Method: Shower: Pull Lever, Eye/Face wash: Pull Lid Forward Eye/Face Wash Bowl Interior Dimensions: 9.5" W x 8" D Rose Diameter, inches: 10 Rose Diameter, mm: 254 minimum Ambient Temperature, °F: 41 minimum Ambient Temperature, °C: 5 Maximum Ambient Temperature, °F: 95 Maximum Ambient Temperature, °C: 35 UPC: 805042000793
