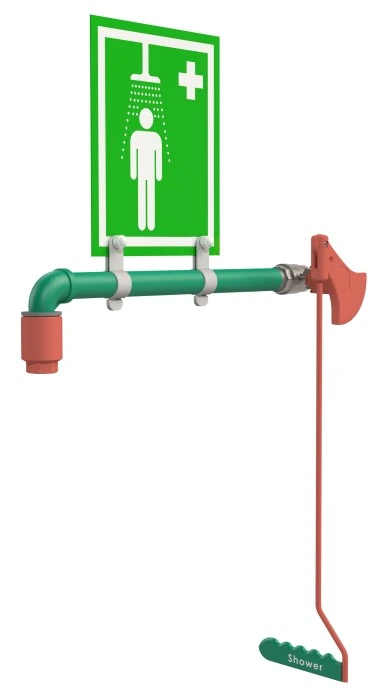

Ring Main Mount, Hughes Drench Shower, Galvanized Pipe - 23GRM

Ideal in factories, schools, laboratories or other indoor environments where space is at a premium, use this ring main mounted shower for treatment of full-body chemical exposure. Suitable for use in all applications that do not require an eye wash and are not subject to the possibility of freezing or overheating.The system features a specially designed valve that includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Low operating torque offers re

Manufacturer part number (MPN)

23GRM Brand: Justrite Category: Tools Net Weight, lbs: 6.6 Net Weight, kg: 3 Dimensions, Exterior: 35.8" H x 6.5" W x 25.6" D (909mm H x 165mm W x 165mm D) Height Without Sign, inches: 25.0 Height Without Sign, mm: 635 UL Classified to ANSI Z358.1-2014: Yes Water Inlet Size NPT: 1 in (M) minimum Operating Pressure: 1.5 bar g, 22 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Shower/Body Liters/min: 76 Water Flow Shower/Body US Gal/min: 20 material Specifications: Nozzle: Nylon 6 Operating Valve material: 316L Stainless Mounting Type: Ring Main Pipework material: Galvanized Steel Activation Method: Pull Handle minimum Ambient Temperature, °F: 41 minimum Ambient Temperature, °C: 5 Maximum Ambient Temperature, °F: 95 Maximum Ambient Temperature, °C: 35 UPC: 805042000212

HS Code

8424.89

• OEM-URL https://www.justrite.com/drench-shower-ring-main-mount-galvanized-pipe-23grm
