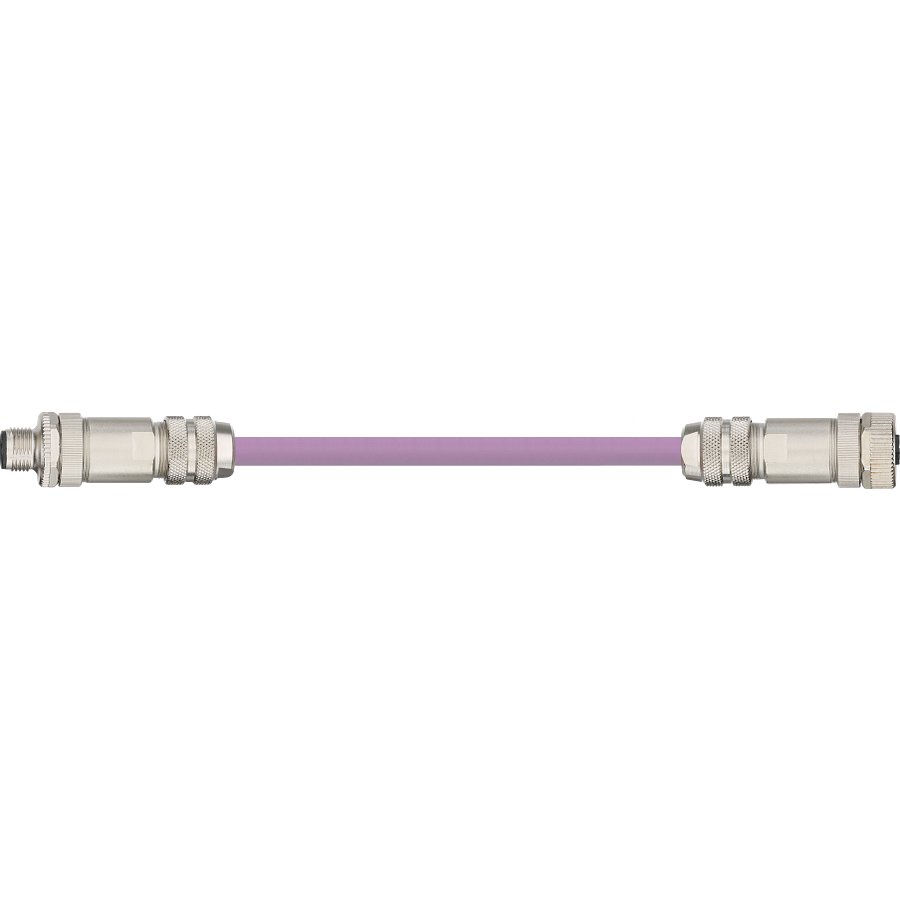

readycable® power cable suitable for Beckhoff ZK1090-6162-0XXX, basic cable, PVC, 12.5 x d (MAT9730301)

Power cable suitable for Beckhoff ZK1090-6162-0, basic cable, PVC, 12.5xd

Manufacturer part number (MPN)

ZK1090-6162-0XXX

Brand

IGUS

Category

Tools

Connector A

M12, 4 pole, straight, d-coded

Bus system

Profinet

Number of cores and conductor nominal cross-section

(4x0.38)C

Copper index kg/km

33 kg/km

Core group 1 core structure

4x0.38

Core group 1 colour code

white, orange, blue, yellow (star-quad stranding)

Wave resistance approx.

100 Ω

Shipping weight (kg or kg/m)

0.587364

Outer diameter (d) max. mm

7 mm

Weight per km

67 kg/km

Min. bend radius, e-chain (factor)

12.5 x d

Min. bend radius, e-chain

87.5 mm

Min. bend radius, flexible (factor)

10 x d

Min. bend radius, flexible

70 mm

Min. bend radius, fixed (factor)

7 x d

Min. bend radius, fixed

49 mm

Temperature e-chain®

+5°C up to +70°C

Temperature, flexible

-5°C to +70°C (according to DIN EN 60811-504)

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

v max. unsupported (speed)

3 m/s

v max. gliding (speed)

2 m/s

a max. (acceleration)

30 m/s²

travel length

Travels up to 20 m

torsion

No Torsion

Conductor

Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).

Core insulation

According to bus specification.

Overall shield

Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical

Outer jacket

Low-adhesion PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).

Outer jacket colour

Yellow-green (comparable to RAL 6018)

Nominal voltage

50V

Test voltage

500V

UV resistance

Medium

Oil resistance

Oil-resistant (according to DIN EN 50363-4-1), Class 2

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

EAC

Certificate No. RU C-DE.ME77.B.00295/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF240.02.24 - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 1598 and 2571, 30 V, 80 °C

UL verified

Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"

UL-Listed

CMX UL 444, 75°C

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42
