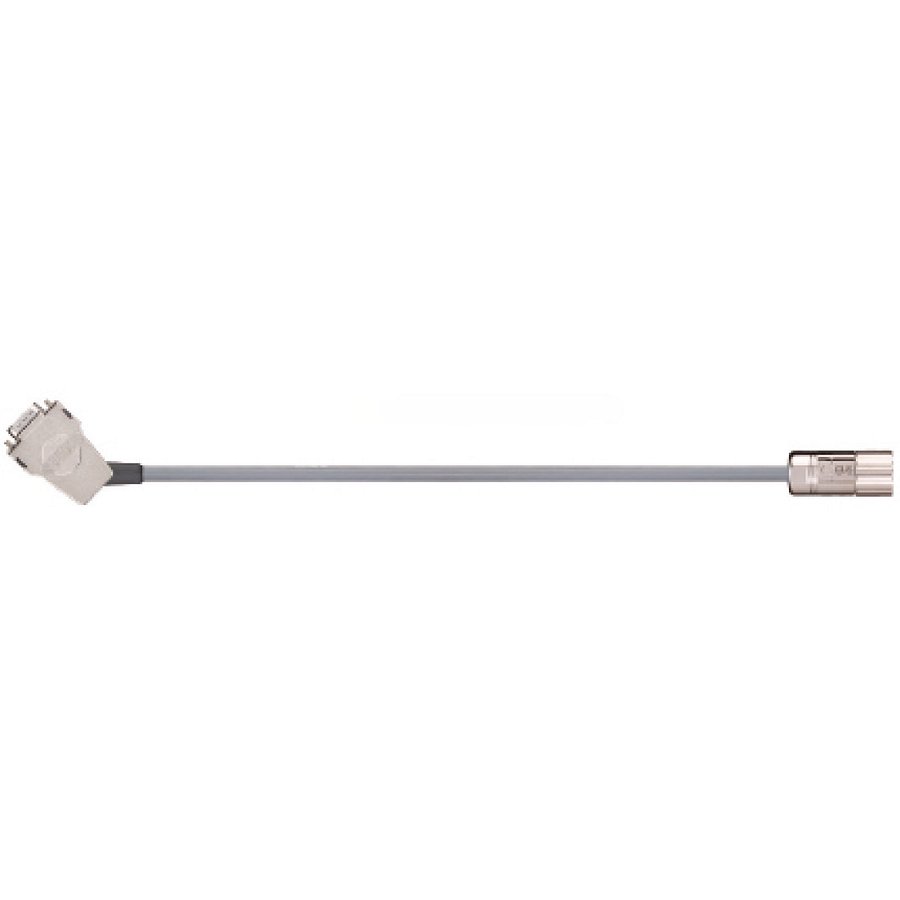

readycable® bus cable suitable for B&R IX20CA3E61.X, base cable PUR 12.5 x d (MAT9730101)
Pricing
Request a quote
We reply within 24 hours
Overview
igus readycable® bus cable suitable for B&R IX20CA3E61.X, base cable PUR 12.5 x d (MAT9730101) (part number IX20CA3E61.XXXX) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: SUB-D, pin; Connector B: round plug, socket; Bus system: Profinet; Copper index kg/km: 33 kg/km; Core group 1 core structure: 4x0.38.
Technical Specifications
- Manufacturer part number (MPN)
- IX20CA3E61.XXXX
- Brand
- IGUS
- Category
- Tools
- Cable type
- Basic cable
- Connector A
- SUB-D, pin
- Connector B
- round plug, socket
- Bus system
- Profinet
- Number of cores and conductor nominal cross-section
- (4x0.38)C
- Copper index kg/km
- 33 kg/km
- Core group 1 core structure
- 4x0.38
- Core group 1 colour code
- white, orange, blue, yellow (star-quad stranding)
- Wave resistance approx.
- 100 Ω
- Shipping weight (kg or kg/m)
- 0.03256
- Outer diameter (d) max. mm
- 7 mm
- Weight per km
- 64 kg/km
- Min. bend radius, e-chain (factor)
- 12.5 x d
- Min. bend radius, e-chain
- 87.5 mm
- Min. bend radius, flexible (factor)
- 10 x d
- Min. bend radius, flexible
- 70 mm
- Min. bend radius, fixed (factor)
- 7 x d
- Min. bend radius, fixed
- 49 mm
- Temperature e-chain®
- -20°C up to +70°C
- Temperature, flexible
- -40°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- v max. gliding (speed)
- 2 m/s
- a max. (acceleration)
- 30 m/s²
- travel length
- Travels up to 20 m
- torsion
- No Torsion
- Conductor
- Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- According to bus specification.
- Overall shield
- Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical
- Outer jacket
- Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Yellow-green (comparable to RAL 6018)
- Nominal voltage
- 50V
- Test voltage
- 500V
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00295/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 1598 and 20236, 30 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- UL-Listed
- CMX UL 444, 75°C
- DESINA
- According to VDW, DESINA standardisation
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- DNV
- Type approval certificate TAE00003X6
- NFPA
- According to NFPA 79-2018, chapter 12.9
- Offshore
- MUD-resistant according to NEK 606 - status 2018
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8544.42
Cross References
- OEM-URL https://www.igus.com/product/MAT9730101
Product Documentation
More from igus
igus
readycable® servo cable suitable for B&R 8BCFXXXX.12230-0, extension cable PVC 10 x d (MAT9740101)
igus
readycable® encoder cable suitable for Festo NEBM-M12G8-E-XXX-S1G9, base cable PVC 7.5 x d (MAT9722306)
igus
readycable® power cable suitable for Beckhoff ZK1090-3161-0XXX, basic cable, PVC, 12.5 x d (MAT9730303)
igus
readycable® bus cable suitable for Festo FBA-CO-SUB-9-M12, base cable, PVC 12.5 x d (MAT9732312)
igus

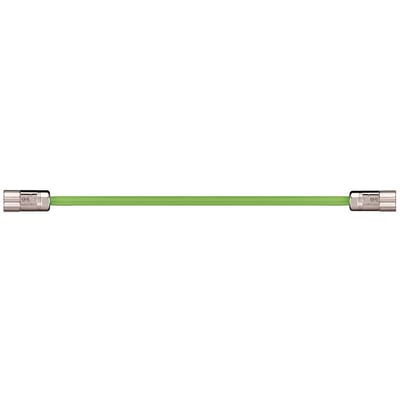

readycable® adapter cable suitable for Heidenhain 298 401-Xx, base cable PVC 10 x d (MAT9741006)
298 401-XX
igus
readycable® adapter cable suitable for Heidenhain 534 855-Xx, base cable PVC 10 x d (MAT9741009)
534 855-XX
igus

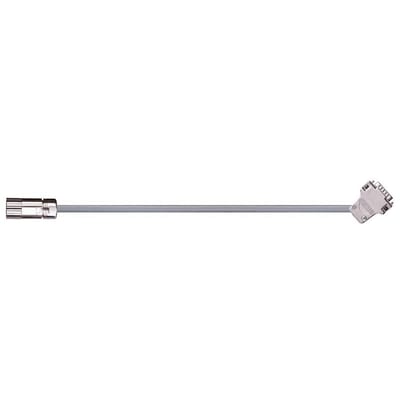

readycable® encoder cable suitable for Bosch Rexroth RG2-002AAB-NN- base cable PVC 10XD (MAT9741301)
RG2-002AAB-NN-XXX,X
igus

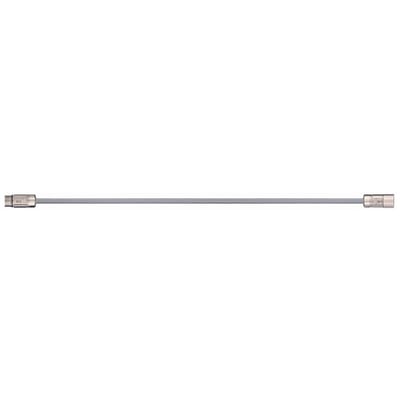

readycable® encoder cable suitable for Bosch Rexroth RG2-510AAB-NN- connecting cable with intermediate connector PVC 10XD (MAT9741302)
