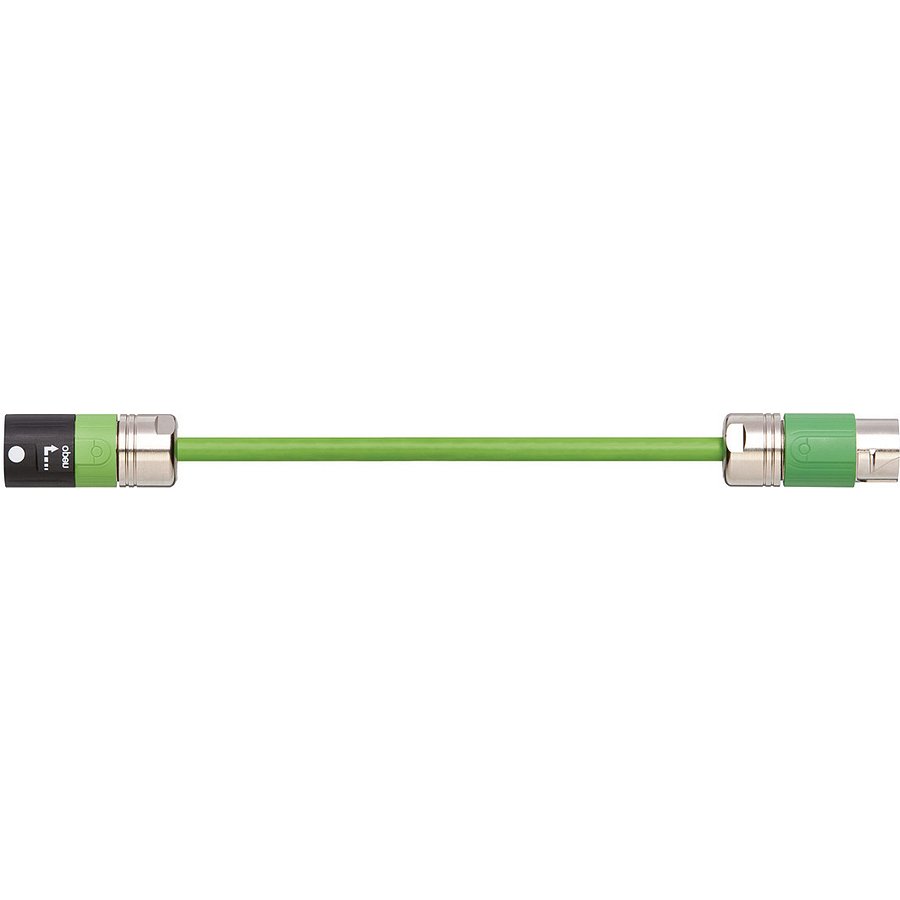

readycable® servo cable suitable for B&R 8BCFXXXX.12230-0, extension cable PVC 10 x d (MAT9740101)
Pricing
Request a quote
We reply within 24 hours
Product Description
readycable® servo cable suitable for B&R 8BCFx.12230-0, extension cable PVC 10 x d
Technical Specifications
- Manufacturer part number (MPN)
- 8BCFXXXX.12230-0
- Brand
- IGUS
- Category
- Tools
- Cable type
- Extension cable
- Connector A
- round plug, socket
- Connector B
- coupling, pin
- Number of cores and conductor nominal cross-section
- ((4x0.14)+2x(2x0.34))C
- Copper index kg/km
- 36 kg/km
- Core group 1 core structure
- (4x0.14)
- Core group 1 colour code
- yellow/grey/violet/pink
- Core group 2 core structure
- 2x(2x0.34)
- Core group 2 colour code
- white-green/white, brown-green/blue
- Outer diameter (d) max. mm
- 7 mm
- Weight per km
- 61 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 70 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 56 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 35 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 5 m/s
- v max. gliding (speed)
- 3 m/s
- a max. (acceleration)
- 30 m/s²
- travel length
- Travels up to 10 m
- torsion
- No Torsion
- Conductor
- Very finely stranded special conductors of particularly bending resistant design made of tinned copper wires.
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- According to measuring system specification
- Liner
- Foil taping over the outer layer.
- Overall shield
- Extremely bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical
- Element shield
- Extremely bend-resistant, tinned copper shielding. Cover approx. 90% optical
- Outer jacket
- Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).
- Outer jacket colour
- Yellow-green (comparable to RAL 6018)
- Nominal voltage
- 50V
- Test voltage
- 500V
- Oil resistance
- Oil-resistant (according to DIN EN 50363-4-1), Class 2
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00295/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 2 The outer jacket material of this series complies with CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10467 and 2464, 300 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8544.42
