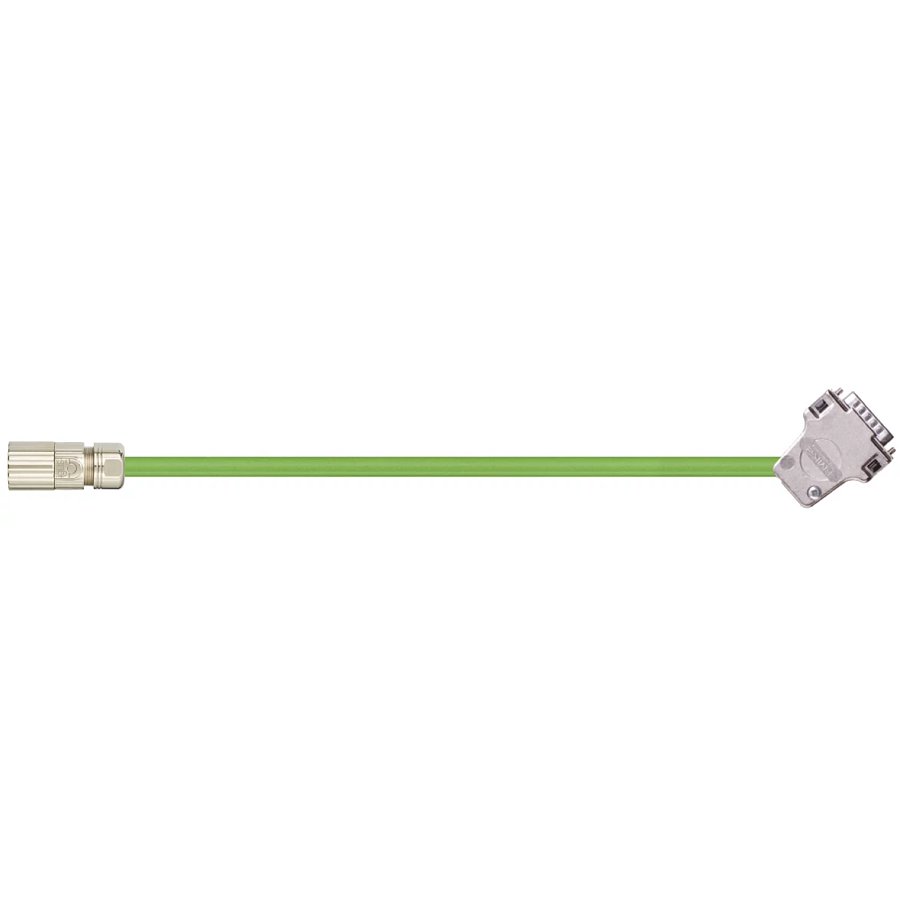

readycable® measuring system cable, suitable for Bosch Rexroth, RKG0065, base cable PVC 10 x d (MAT9741333)

igus readycable® measuring system cable, suitable for Bosch Rexroth, RKG0065, base cable PVC 10 x d (MAT9741333) is listed under Safety & Detection / Tools. Connector A: Plug-in connector, socket, 9-pin; Connector B: SUB-D pin 15-pin angled; Copper index kg/km: 34 kg/km; Core group 1 core structure: 2x(2x0.25); Core group 1 colour code: red/black, grey/pink; Core group 2 core structure: 2x0.5.

Manufacturer part number (MPN)

RKG0065

Brand

IGUS

Category

Tools

Connector A

Plug-in connector, socket, 9-pin

Connector B

SUB-D pin 15-pin angled

Number of cores and conductor nominal cross-section

(2x(2x0.25)+2x0.5)C

Copper index kg/km

34 kg/km

Core group 1 core structure

2x(2x0.25)

Core group 1 colour code

red/black, grey/pink

Core group 2 core structure

2x0.5

Shipping weight (kg or kg/m)

0.054

Outer diameter (d) max. mm

6.5 mm

Weight per km

54 kg/km

Min. bend radius, e-chain (factor)

10 x d

Min. bend radius, e-chain

65 mm

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

52 mm

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

32.5 mm

Temperature e-chain®

+5°C up to +70°C

Temperature, flexible

-5°C to +70°C (according to DIN EN 60811-504)

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

v max. unsupported (speed)

5 m/s

v max. gliding (speed)

3 m/s

a max. (acceleration)

30 m/s²

travel length

Travels up to 10 m

torsion

No Torsion

Conductor

Very finely stranded special conductors of particularly bending resistant design made of tinned copper wires.

Core insulation

Mechanically high-quality TPE mixture.

Core stranding

According to measuring system specification

Liner

Foil taping over the outer layer.

Overall shield

Extremely bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical

Element shield

Extremely bend-resistant, tinned copper shielding. Cover approx. 90% optical

Outer jacket

Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).

Outer jacket colour

Yellow-green (comparable to RAL 6018)

Nominal voltage

50V

Test voltage

500V

Oil resistance

Oil-resistant (according to DIN EN 50363-4-1), Class 2

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

EAC

Certificate No. RU C-DE.ME77.B.00295/19

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 2 The outer jacket material of this series complies with CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 10467 and 2464, 300 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

HS Code

8544.42
