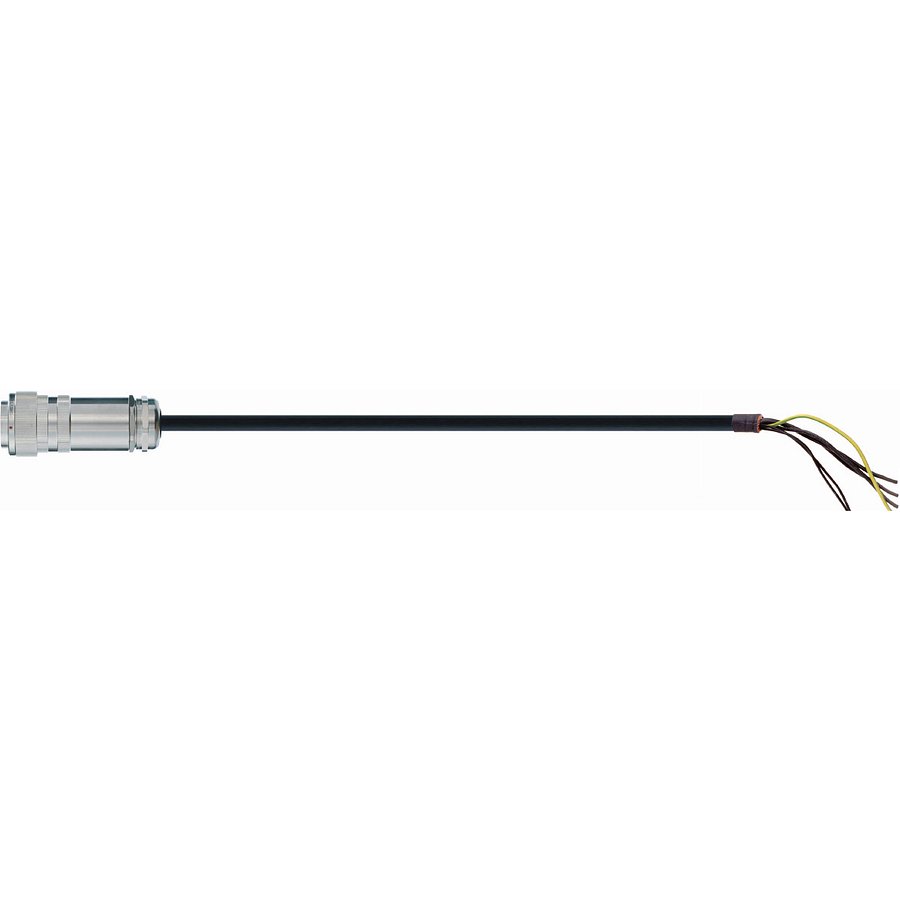

readycable® motor cable suitable for Allen Bradley 2090-NPMP-16S, basic cable PVC 7.5XD (MAT9761710)

igus readycable® motor cable suitable for Allen Bradley 2090-NPMP-16S, basic cable PVC 7.5XD (MAT9761710) (part number 2090-XXXNPMP-16SXX) is listed under Safety & Detection / Tools. Connector A: round plug, socket; Connector B: open cable end; Copper index kg/km: 89 kg/km; Shipping weight (kg or kg/m): 0.09806; Outer diameter (d) max. mm: 10 mm; Weight per km: 157 kg/km.

Manufacturer part number (MPN)

2090-XXXNPMP-16SXX

Brand

IGUS

Category

Tools

Connector A

round plug, socket

Connector B

open cable end

Number of cores and conductor nominal cross-section

(4G1.5)C

Copper index kg/km

89 kg/km

Shipping weight (kg or kg/m)

0.09806

Outer diameter (d) max. mm

10 mm

Weight per km

157 kg/km

Min. bend radius, e-chain (factor)

7.5 x d

Min. bend radius, e-chain

75 mm

Min. bend radius, flexible (factor)

6 x d

Min. bend radius, flexible

60 mm

Min. bend radius, fixed (factor)

4 x d

Min. bend radius, fixed

40 mm

Temperature e-chain®

+5°C up to +70°C

Temperature, flexible

-5°C to +70°C (according to DIN EN 60811-504)

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

v max. gliding (speed)

5 m/s

a max. (acceleration)

80 m/s²

travel length

Unsupported travel distances and up to 100 m for gliding applications

torsion

No Torsion

Conductor

Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality, especially low-capacity XLPE mixture.

Core stranding

Cores wound with a short pitch length around a high tensile strength centre element.

Inner jacket

PVC mixture adapted to suit the requirements in e-chains®.

Overall shield

Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%

Outer jacket

Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).

Outer jacket colour

Jet black (comparable to RAL 9005)

CFRIP®

Strip cables faster: a tear strip is moulded into the inner jacket

Nominal voltage

600/1,000V (according to DIN VDE 0298-3)

Test voltage

4000V (according to DIN EN 50395)

UV resistance

Medium

Oil resistance

Oil-resistant (according to DIN EN 50363-4-1), Class 2

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

EAC

Certificate No. RU C-DE.ME77.B.00863/20

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 2 The outer jacket material of this series complies with CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 30052 und 20886, 1000V, 90°C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

HS Code

8544.42
