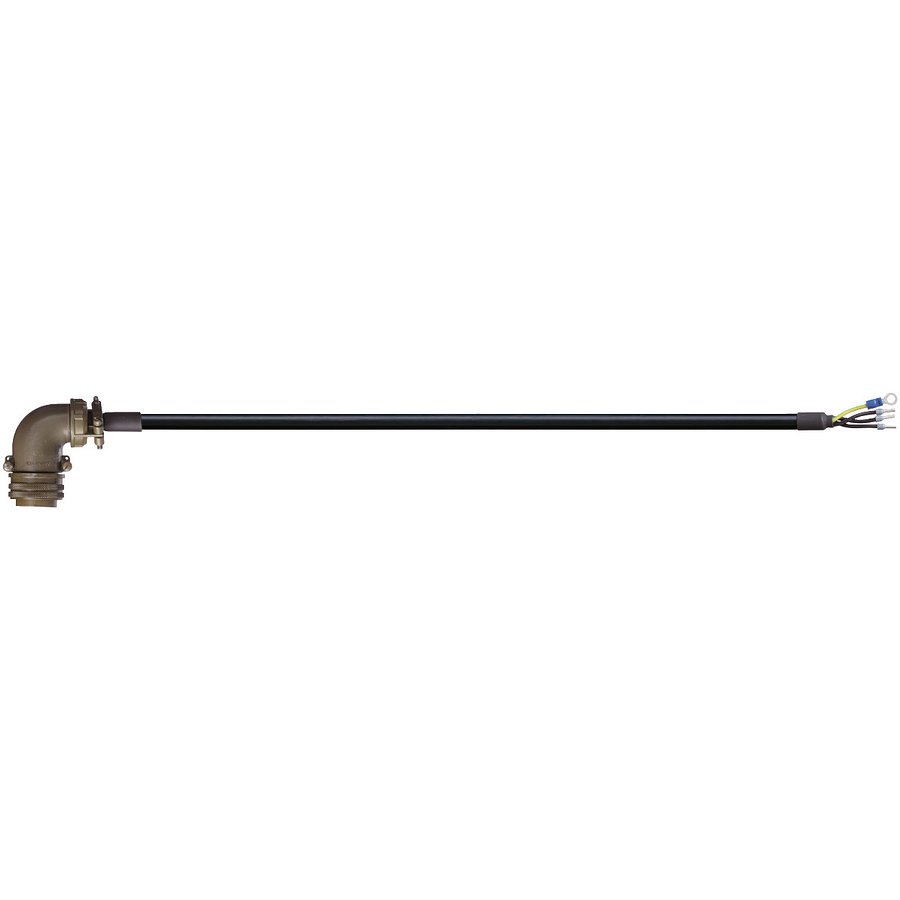

readycable® motor cable suitable for Omron R88A-CAWA-S-DE, base cable TPE 7.5 x d (MAT9810004)

igus readycable® motor cable suitable for Omron R88A-CAWA-S-DE, base cable TPE 7.5 x d (MAT9810004) (part number R88A-CAWA-XXXS-DE) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: Connector, socket, 6-pin; Connector B: Wire end sleeve/ring cable lug; Copper index kg/km: 42 kg/km; Shipping weight (kg or kg/m): 0.049197; Outer diameter (d) max. mm: 7.5 mm.

Manufacturer part number (MPN)

R88A-CAWA-XXXS-DE

Brand

IGUS

Category

Tools

Cable type

Basic cable

Connector A

Connector, socket, 6-pin

Connector B

Wire end sleeve/ring cable lug

Number of cores and conductor nominal cross-section

(4G0.5)C

Copper index kg/km

42 kg/km

Shipping weight (kg or kg/m)

0.049197

Outer diameter (d) max. mm

7.5 mm

Weight per km

79 kg/km

Min. bend radius, e-chain (factor)

7.5 x d

Min. bend radius, e-chain

56.25 mm

Min. bend radius, flexible (factor)

6 x d

Min. bend radius, flexible

45 mm

Min. bend radius, fixed (factor)

4 x d

Min. bend radius, fixed

30 mm

Temperature e-chain®

-35°C up to +90°C

Temperature, flexible

-45°C to +90°C (according to DIN EN 60811-504)

Temperature, fixed

-50°C to +90°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

v max. gliding (speed)

6 m/s

a max. (acceleration)

80 m/s²

travel length

Travels up to 400 m and more

torsion

No Torsion

Conductor

Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality, especially low-capacity XLPE mixture.

Inner jacket

TPE mixture adapted to suit the requirements in e-chains®.

Overall shield

Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%

Outer jacket

Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.

Outer jacket colour

Signal black (comparable to RAL 9004)

CFRIP®

Strip cables faster: a tear strip is moulded into the inner jacket

Nominal voltage

600/1,000V (according to DIN VDE 0298-3)

Test voltage

4000V (according to DIN EN 50395)

UV resistance

High

Oil resistance

Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

EAC

Certificate No. RU C-DE.ME77.B.00863/20

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF34.UL.25.04.D - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 10492 and 22188, 1000 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

DNV

Type approval certificate TAE00003X9

NFPA

According to NFPA 79-2018, chapter 12.9

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42
