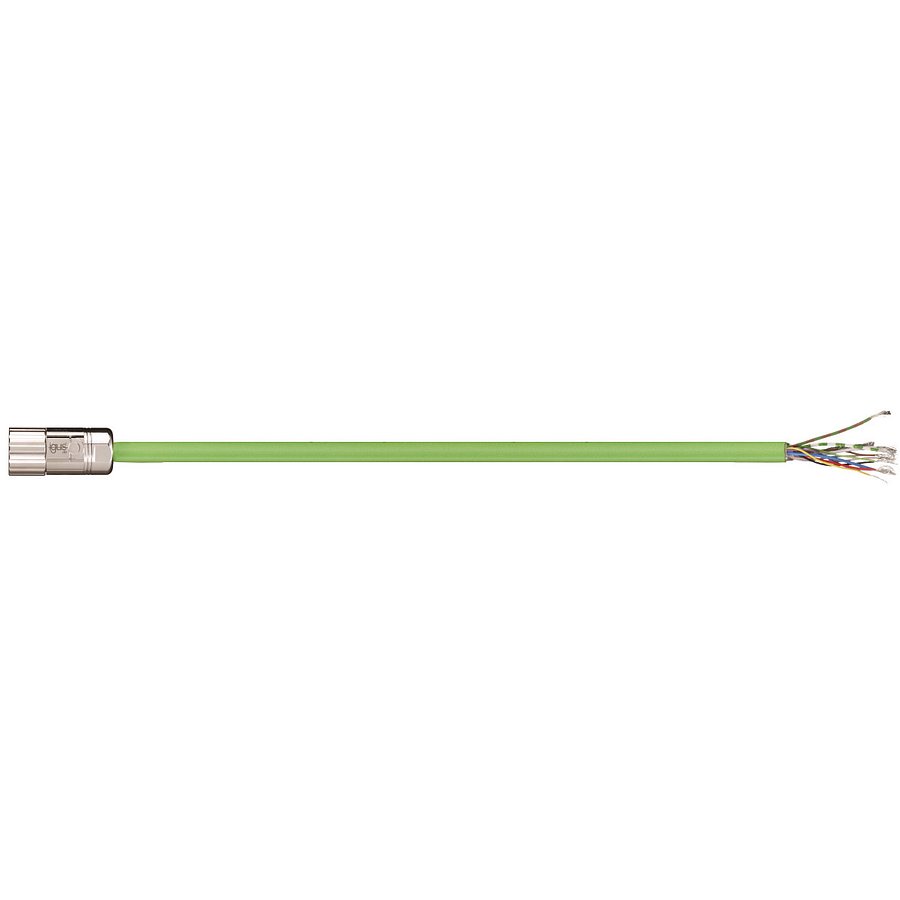

readycable® adapter cable suitable for Heidenhain 605 424-Xx, base cable PUR 10 x d (MAT9841001)
Pricing
Request a quote
We reply within 24 hours
Product Description
readycable® adapter cable suitable for Heidenhain 605 424-, base cable PUR 10 x d
Technical Specifications
- Manufacturer part number (MPN)
- 605 424-XX
- Brand
- IGUS
- Category
- Tools
- Cable type
- Basic cable
- Connector A
- round plug, socket
- Connector B
- open cable end
- Number of cores and conductor nominal cross-section
- (3x(2x0.14)C+(4x0.14)+(4x0.25)+(2x0.5))C
- Copper index kg/km
- 76 kg/km
- Core group 1 core structure
- 3x(2x0.14)C
- Core group 1 colour code
- green/yellow, black/brown, red/orange
- Core group 2 core structure
- (4x0.14)
- Core group 2 colour code
- grey/blue/white-yellow/white-black
- Core group 3 core structure
- (4x0.25)
- Core group 3 colour code
- yellow-brown/grey-brown/green-black/green-red
- Core group 4 core structure
- (2x0.5)
- Core group 4 colour code
- brown-red/brown-blue
- Shipping weight (kg or kg/m)
- 0.122
- Outer diameter (d) max. mm
- 10 mm
- Weight per km
- 122 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 100 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 80 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 50 mm
- Temperature e-chain®
- -25°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 5 m/s
- v max. gliding (speed)
- 3 m/s
- a max. (acceleration)
- 30 m/s²
- travel length
- Travels up to 10 m
- torsion
- No Torsion
- Conductor
- Very finely stranded special conductors of particularly bending resistant design made of tinned copper wires.
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- According to measuring system specification
- Liner
- Foil taping over the outer layer.
- Overall shield
- Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical
- Element shield
- Extremely bend-resistant, tinned copper shielding. Cover approx. 90% optical
- Outer jacket
- Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Yellow-green (comparable to RAL 6018)
- Nominal voltage
- 50V
- Test voltage
- 500V
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00295/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10467 and 20233, 300 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- DESINA
- According to VDW, DESINA standardisation
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- DNV
- Type approval certificate TAE00003X4
- NFPA
- According to NFPA 79-2018, chapter 12.9
- Offshore
- MUD-resistant according to NEK 606 - status 2018
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
