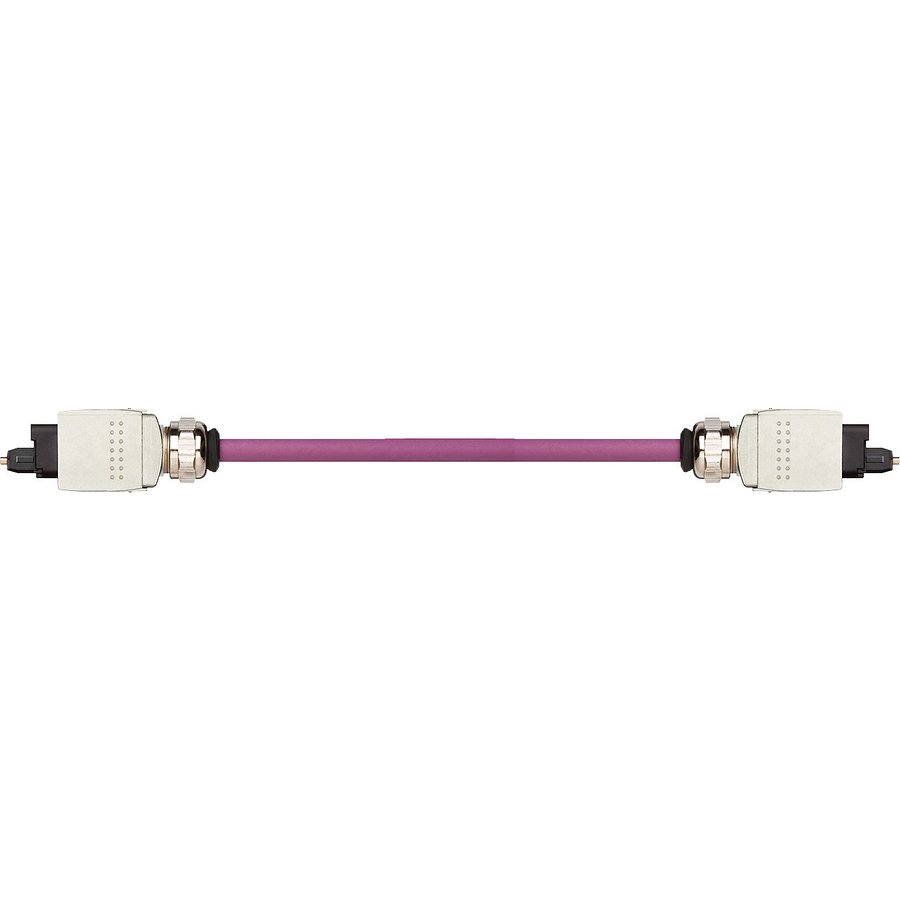

readycable® fibre optic cable according to AIDA Profinet LWL, extension cable 7TH axis, male/male
Pricing
Request a quote
We reply within 24 hours
Product Description
readycable® fibre optic cable suitable for AIDA Profinet fibre optic cable, extension cable 7th axis, pin/pin
Technical Specifications
- Manufacturer part number (MPN)
- MAT904117092
- Brand
- IGUS
- Category
- Tools
- Connector A
- AIDA Profinet LWL pin
- Fibre type
- POF
- Fibre identification
- black, blue
- number of fibres
- 2
- Attenuation [dB/km] @ 650 nm
- 200
- Shipping weight (kg or kg/m)
- 0.165
- Outer diameter (d) max. mm
- 7 mm
- Weight per km
- 31 kg/km
- Min. bend radius, e-chain (factor)
- 12.5 x d
- Min. bend radius, e-chain
- 87.5 mm
- Min. bend radius, flexible (factor)
- 10 x d
- Min. bend radius, flexible
- 70 mm
- Min. bend radius, fixed (factor)
- 7 x d
- Min. bend radius, fixed
- 49 mm
- Temperature e-chain®
- -20°C up to +60°C
- Temperature, flexible
- -40°C to +60°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +60°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 5 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Travels up to 20 m
- torsion
- No Torsion
- Core stranding
- POF fibre with stranded high-tensile plastic reinforcement.
- Outer jacket
- Low-adhesion, halogen-free PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Red lilac (comparable to RAL 4001)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8544.70
