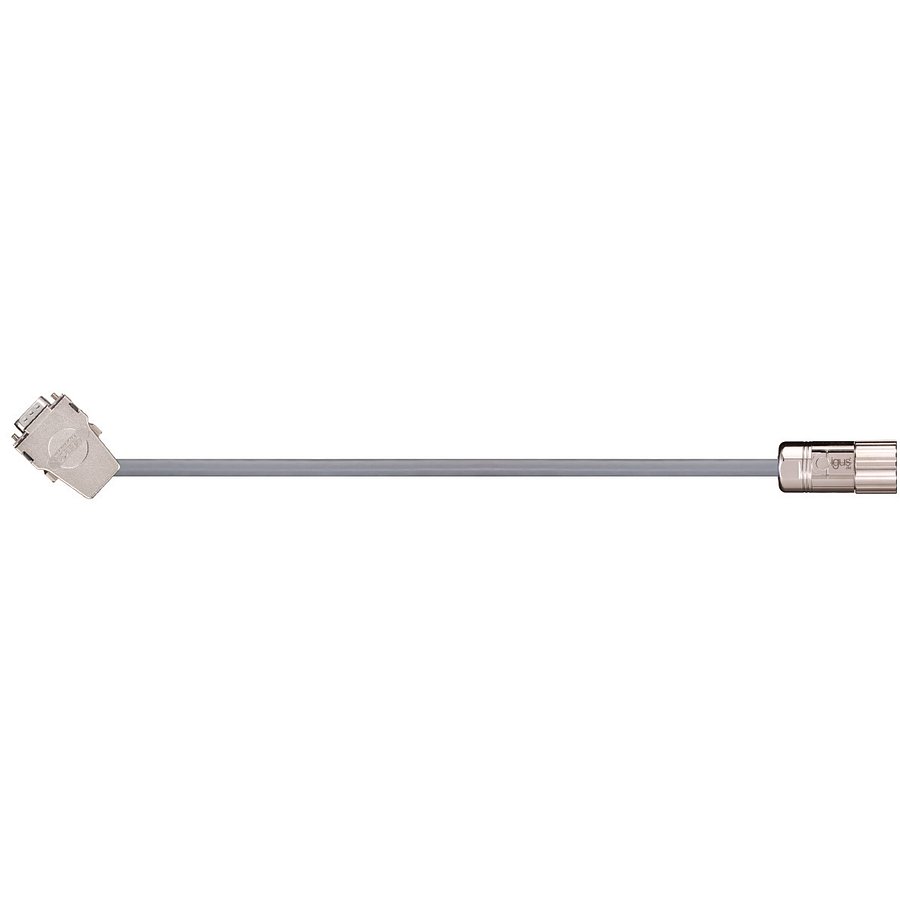

readycable® encoder cable suitable for Elau E-FB-080, base cable PVC 10 x d (MAT9480003)

igus readycable® encoder cable suitable for Elau E-FB-080, base cable PVC 10 x d (MAT9480003) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: SUB-D, pin; Connector B: round plug, socket; Copper index kg/km: 49 kg/km; Core group 1 core structure: 4x(2x0.25); Core group 1 colour code: brown/green, blue/violet, grey/pink, red/black.

Manufacturer part number (MPN)

E-FB-080

Brand

IGUS

Category

Tools

Cable type

Basic cable

Connector A

SUB-D, pin

Connector B

round plug, socket

Number of cores and conductor nominal cross-section

(4x(2x0.25)+2x0.5)C

Copper index kg/km

49 kg/km

Core group 1 core structure

4x(2x0.25)

Core group 1 colour code

brown/green, blue/violet, grey/pink, red/black

Core group 2 core structure

2x0.5

Core group 2 colour code

white, brown

Shipping weight (kg or kg/m)

0.13929

Outer diameter (d) max. mm

8 mm

Weight per km

79 kg/km

Min. bend radius, e-chain (factor)

10 x d

Min. bend radius, e-chain

80 mm

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

64 mm

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

40 mm

Temperature e-chain®

+5°C up to +70°C

Temperature, flexible

-5°C to +70°C (according to DIN EN 60811-504)

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

v max. unsupported (speed)

5 m/s

v max. gliding (speed)

3 m/s

a max. (acceleration)

30 m/s²

travel length

Travels up to 10 m

torsion

No Torsion

Conductor

Very finely stranded special conductors of particularly bending resistant design made of tinned copper wires.

Core insulation

Mechanically high-quality TPE mixture.

Core stranding

According to measuring system specification

Liner

Foil taping over the outer layer.

Overall shield

Extremely bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical

Element shield

Extremely bend-resistant, tinned copper shielding. Cover approx. 90% optical

Outer jacket

Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).

Outer jacket colour

Yellow-green (comparable to RAL 6018)

Nominal voltage

50V

Test voltage

500V

Oil resistance

Oil-resistant (according to DIN EN 50363-4-1), Class 2

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

EAC

Certificate No. RU C-DE.ME77.B.00295/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 2 The outer jacket material of this series complies with CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 10467 and 2464, 300 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.42
