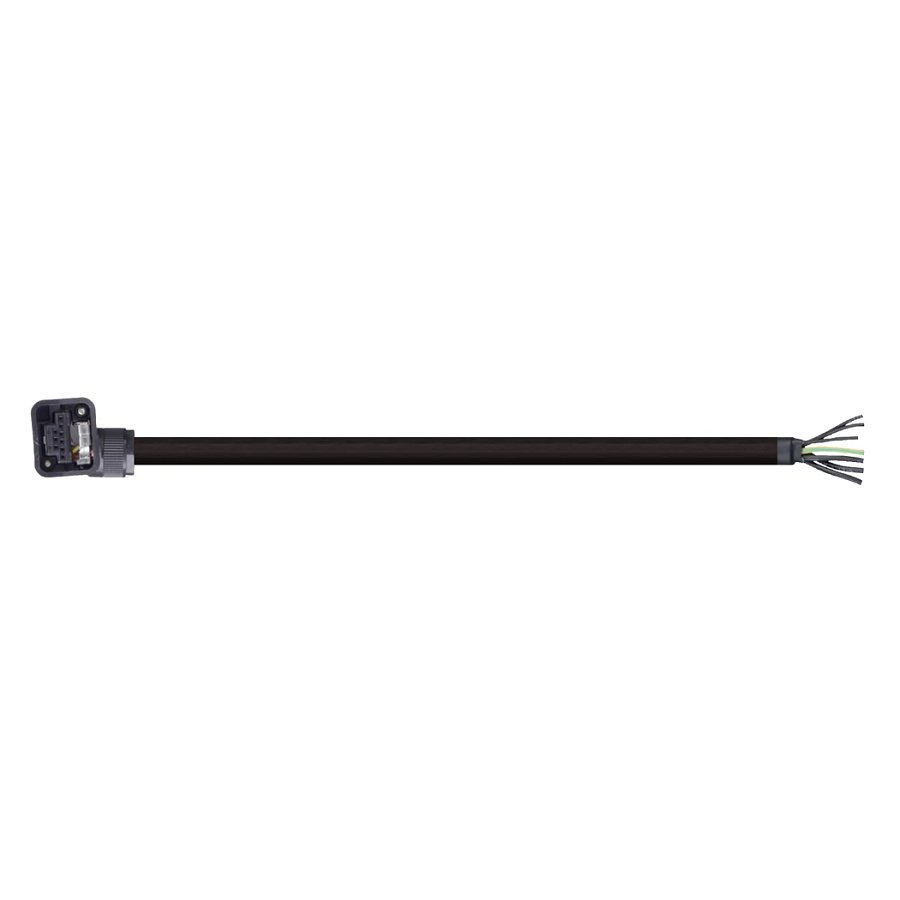

readycable® control cable suitable for Mitsubishi Electric MR-BKS1CBL--A1-H, base cable, iguPUR 15 x d (MAT9512002)
Pricing
Request a quote
We reply within 24 hours
Overview
igus readycable® control cable suitable for Mitsubishi Electric MR-BKS1CBL--A1-H, base cable, iguPUR 15 x d (MAT9512002) (part number MR-BKS1CBL-XXX-A1-H) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: Plug-in connector socket angled 2-pin; Connector B: Wire end sleeve; Copper index kg/km: 24 kg/km; Shipping weight (kg or kg/m): 0.00338; Outer diameter (d) max. mm: 6 mm.
Technical Specifications
- Manufacturer part number (MPN)
- MR-BKS1CBL-XXX-A1-H
- Brand
- IGUS
- Category
- Tools
- Cable type
- Basic cable
- Connector A
- Plug-in connector socket angled 2-pin
- Connector B
- Wire end sleeve
- Number of cores and conductor nominal cross-section
- 3G0.75
- Copper index kg/km
- 24 kg/km
- Shipping weight (kg or kg/m)
- 0.00338
- Outer diameter (d) max. mm
- 6 mm
- Weight per km
- 46 kg/km
- Min. bend radius, e-chain (factor)
- 12.5 x d
- Min. bend radius, e-chain
- 75 mm
- Min. bend radius, flexible (factor)
- 10 x d
- Min. bend radius, flexible
- 60 mm
- Min. bend radius, fixed (factor)
- 7 x d
- Min. bend radius, fixed
- 42 mm
- Temperature e-chain®
- -20°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Unsupported up to 10 m
- torsion
- No Torsion
- Conductor
- Conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound with an optimised pitch length.
- Outer jacket
- Low-adhesion iguPUR mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 2000V (according to DIN EN 50395)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 11323 and 20940, 600 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8544.42
Cross References
- OEM-URL https://www.igus.com/product/MAT9512002
Product Documentation
