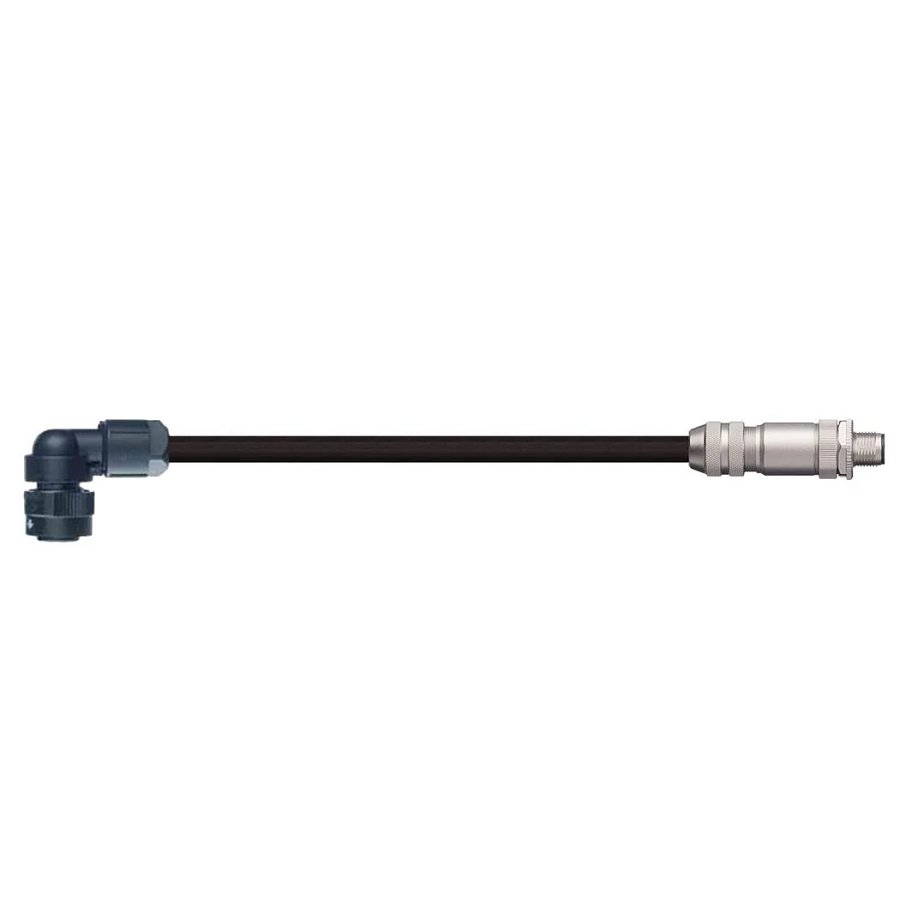

readycable® brake cable suitable for Fanuc LX660-8077-T311, base cable iguPUR 12.5 x d (MAT9510919)
Pricing
Request a quote
We reply within 24 hours
Overview
igus readycable® brake cable suitable for Fanuc LX660-8077-T311, base cable iguPUR 12.5 x d (MAT9510919) is listed under Safety & Detection / Tools. Cable type: Basic cable; Connector A: Plug-in connector, pin, angled, 4-pin; Connector B: val_265; Copper index kg/km: 37 kg/km; Shipping weight (kg or kg/m): 0.0563; Outer diameter (d) max. mm: 7 mm.
Technical Specifications
- Manufacturer part number (MPN)
- LX660-8077-T311
- Brand
- IGUS
- Category
- Tools
- Cable type
- Basic cable
- Connector A
- Plug-in connector, pin, angled, 4-pin
- Connector B
- val_265
- Number of cores and conductor nominal cross-section
- (3G0.75)C
- Copper index kg/km
- 37 kg/km
- Shipping weight (kg or kg/m)
- 0.0563
- Outer diameter (d) max. mm
- 7 mm
- Weight per km
- 63 kg/km
- Min. bend radius, e-chain (factor)
- 12.5 x d
- Min. bend radius, e-chain
- 87.5 mm
- Min. bend radius, flexible (factor)
- 10 x d
- Min. bend radius, flexible
- 70 mm
- Min. bend radius, fixed (factor)
- 7 x d
- Min. bend radius, fixed
- 49 mm
- Temperature e-chain®
- -20°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Unsupported up to 10 m
- torsion
- No Torsion
- Conductor
- Conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound with an optimised pitch length.
- Overall shield
- Braiding made of tinned copper wires. Cover approx. 60% optical.
- Outer jacket
- Low-adhesion iguPUR mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 2000V (according to DIN EN 50395)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 11323 and 20940, 600 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8544.42
Cross References
- OEM-URL https://www.igus.com/product/MAT9510919
Product Documentation
