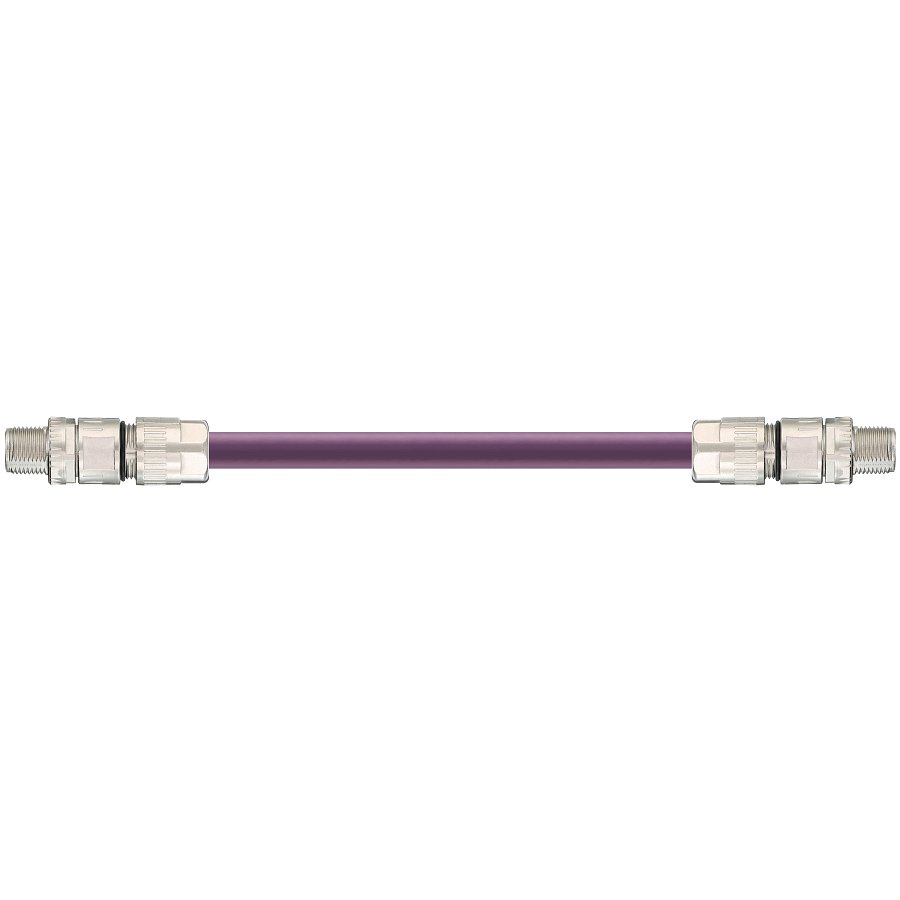

Harnessed SPE cable, PUR 12.5XD, connector A: Harting M12 socket B: Harting M12 socket

Harnessed single-pair Ethernet cable with Harting M12-SD-CC-CRIMP-2P-SPE-M-size-SHLD, ready to ship within 10 working days

Manufacturer part number (MPN)

CAT9471004 Brand: IGUS Category: Tools Bus system: Single Pair Ethernet/CAT5e Number of cores and conductor nominal cross-section: (2x0.15)C Copper index kg/km: 12 kg/km Core group 1 core structure: 2x0.15 Core group 1 colour code: white/blue Shipping weight (kg or kg/m): 0.587364 Outer diameter (d) max. mm: 5.5 mm Weight per km: 33 kg/km Min. bend radius, e-chain (factor): 12.5 x d Min. bend radius, e-chain: 68.75 mm Min. bend radius, flexible (factor): 10 x d Min. bend radius, flexible: 55 mm Min. bend radius, fixed (factor): 7 x d Min. bend radius, fixed: 38.5 mm Temperature e-chain®: -20°C up to +70°C Temperature, flexible: -40°C to +70°C (according to DIN EN 60811-504) Temperature, fixed: -50°C to +70°C (according to DIN EN 50305) v max. unsupported (speed): 3 m/s v max. gliding (speed): 2 m/s a max. (acceleration): 30 m/s² travel length: Travels up to 20 m torsion: No Torsion Conductor: Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228). Core insulation: According to bus specification. Overall shield: Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical Outer jacket: Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2). Outer jacket colour: Red lilac (comparable to RAL 4001) Nominal voltage: 50V Test voltage: 500V UV resistance: Medium Oil resistance: Oil-resistant (according to DIN EN 50363-10-2), Class 3 Silicone-free: Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992) Halogen-free: According to DIN EN 60754 EAC: Certificate No. RU C-DE.ME77.B.00295/19 REACH: In accordance with Regulation (EC) No. 1907/2006 (REACH) Lead-free: According to 2011/65/EU (RoHs-II/RoHS-III) Cleanroom: According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1 CE: According to 2014/35/EU UL verified: Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year" UL-Listed: CMX UL 444, 75°C DESINA: According to VDW, DESINA standardisation Flame-retardant: According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame DNV: Type Approval Certificate TAE00003X8 NFPA: According to NFPA 79-2018, chapter 12.9 Offshore: MUD-resistant according to NEK 606 - status 2018 UKCA: In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

6307.90

• OEM-URL https://www.igus.com/product/CAT9471004
