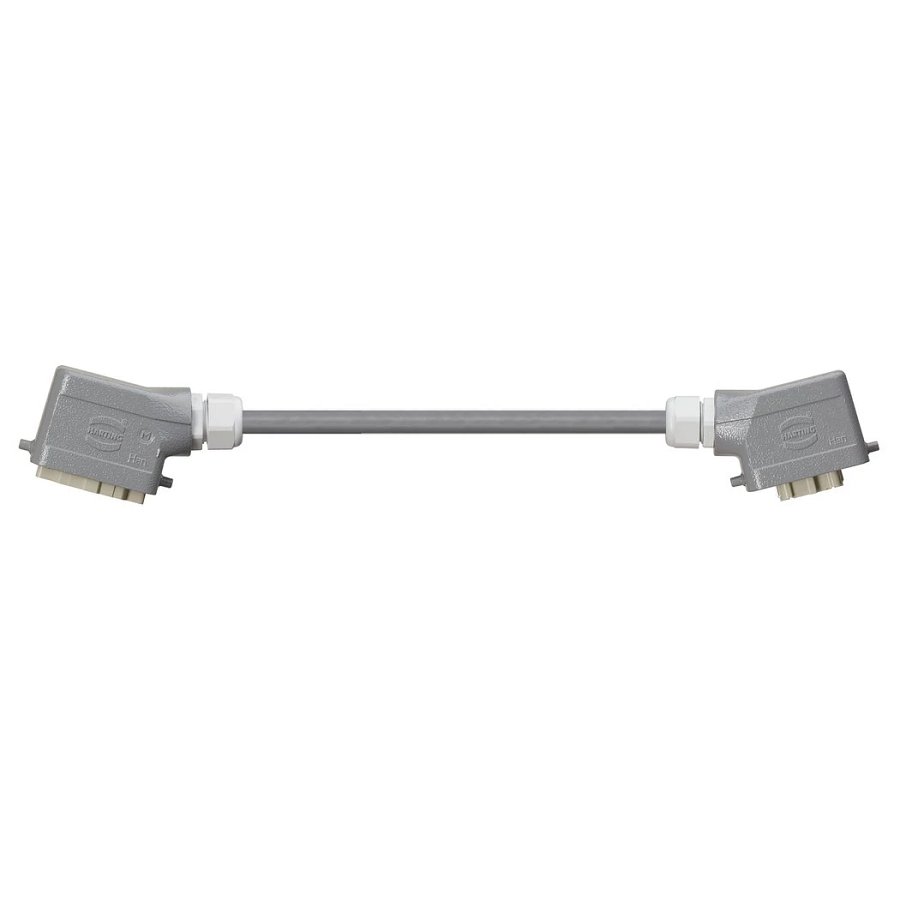

Han 6B Connector housing (pin) to Han 6B Connector housing (socket), Single locking lever on both sides, angled, PVC 6.8 x d
Pricing
Request a quote
We reply within 24 hours
Product Description
Han 6B connector housing (pin) on Han 6B connector housing (socket), single locking lever, angled at both ends, PVC 6.8xd
Technical Specifications
- Manufacturer part number (MPN)
- MAT90489370
- Brand
- IGUS
- Category
- Tools
- Connector A
- Socket M20 insert 6+PE lateral Cable entry
- Connector B
- Connector M20 insert 6+PE lateral Cable entry
- Insert 1 HARTING Part No.
- 09330062702
- Insert 2 HARTING Part No.
- 09330062602
- Housing 1 HARTING Part No.
- 19300061540
- Housing series
- Han 6B
- Connector design
- cable entry angled on both sides
- Locking type
- single locking lever
- Number of cores and conductor nominal cross-section
- 7G1.5
- Copper index kg/km
- 105 kg/km
- Outer diameter (d) max. mm
- 10.5 mm
- Weight per km
- 180 kg/km
- Min. bend radius, e-chain (factor)
- 6.8 x d
- Min. bend radius, e-chain
- 71.4 mm
- Min. bend radius, flexible (factor)
- 5 x d
- Min. bend radius, flexible
- 52.5 mm
- Min. bend radius, fixed (factor)
- 4 x d
- Min. bend radius, fixed
- 42 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 5 m/s
- a max. (acceleration)
- 80 m/s²
- travel length
- Unsupported travel distances and up to 100 m for gliding applications
- v max., twisted (speed)
- 90 °/m
- torsion
- Torsion ±90°, with 1m cable length, Class 2
- Conductor
- Finely stranded conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality PVC mixture.
- Core stranding
- Cores wound in a layer with short pitch length.
- Outer jacket
- Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).
- Outer jacket colour
- Moss green (comparable to RAL 6005)
- CFRIP®
- Strip cables faster: a tear strip is moulded into the outer jacket
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 2000V (according to DIN EN 50395)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-4-1), Class 2
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 2, material/cable tested by IPA according to ISO standard 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 11113 and 2570, 600 V, 80 °C
- UL verified
- Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8538.90
Cross References
- OEM-URL https://www.igus.com/product/MAT90489370
Product Documentation
More from igus
igus
Han 6B Connector housing (pin) to Han 6B Connector housing (socket), Single locking lever on both sides, angled, iguPUR
MAT90489371
igus
Han 6B Connector housing (pin) to Han 6B Connector housing (socket), Single locking lever on both sides, angled, PUR 6.8 x d
MAT90489372
igus
Han 6B Connector housing (pin) to Han 6B Connector housing (socket), Single locking lever on both sides, angled, PUR 10 x d
MAT90489375
igus
Han 6B Connector housing (pin) to Han 6B Connector housing (socket), Single locking lever on both sides, angled, TPE, Flame retardant
MAT90489374
igus
Han 6B Connector housing (pin) to Han 6B Connector housing (socket), Single locking lever on both sides, angled, TPE, halogen free
MAT90489373
igus

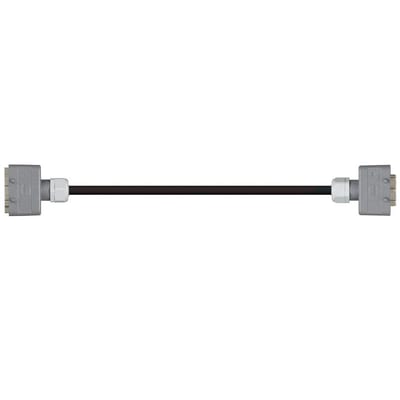

Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, PVC 12.5 x d
