Han 6B Connector housing (pin) to Han 6B Connector housing (socket), Single locking lever on both sides, angled, TPE, Flame retardant
Pricing
Request a quote
We reply within 24 hours
Product Description
Han 6B connector housing (pin) on Han 6B connector housing (socket), single locking lever, angled at both ends, TPE, flame-retardant
Technical Specifications
- Manufacturer part number (MPN)
- MAT90489374
- Brand
- IGUS
- Category
- Tools
- Connector A
- Socket M20 insert 6+PE lateral Cable entry
- Connector B
- Connector M20 insert 6+PE lateral Cable entry
- Insert 1 HARTING Part No.
- 09330062702
- Insert 2 HARTING Part No.
- 09330062602
- Housing 1 HARTING Part No.
- 19300061540
- Housing series
- Han 6B
- Connector design
- cable entry angled on both sides
- Locking type
- single locking lever
- Number of cores and conductor nominal cross-section
- 7G1.5
- Copper index kg/km
- 104 kg/km
- Outer diameter (d) max. mm
- 10 mm
- Weight per km
- 171 kg/km
- Min. bend radius, e-chain (factor)
- 5 x d
- Min. bend radius, e-chain
- 50 mm
- Min. bend radius, flexible (factor)
- 4 x d
- Min. bend radius, flexible
- 40 mm
- Min. bend radius, fixed (factor)
- 3 x d
- Min. bend radius, fixed
- 30 mm
- Temperature e-chain®
- -35°C up to +100°C
- Temperature, flexible
- -45°C to +100°C (according to DIN EN 60811-504)
- Temperature, fixed
- -55°C to +100°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 6 m/s
- a max. (acceleration)
- 100 m/s²
- travel length
- Travels up to 400 m and more
- v max., twisted (speed)
- 90 °/m
- torsion
- Torsion ±90°, with 1m cable length, Class 2
- Conductor
- Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound in a layer with short pitch length.
- Outer jacket
- Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Slate grey (comparable to RAL 7015)
- CFRIP®
- Strip cables faster: a tear strip is moulded into the outer jacket
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 2000V (according to DIN EN 50395)
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF34.UL.25.04.D - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 11886 and 22022, 1000 V, 90 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- DNV
- Type approval certificate TAE00003X2
- NFPA
- According to NFPA 79-2018, chapter 12.9
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8538.90
Cross References
- OEM-URL https://www.igus.com/product/MAT90489374
Product Documentation
More from igus
igus
Han 6B Connector housing (pin) to Han 6B Connector housing (socket), Single locking lever on both sides, angled, TPE, halogen free
MAT90489373
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, PVC 12.5 x d
MAT90489376
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, PVC 7.5 x d
MAT90489377
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, PVC 6.8 x d
MAT90489378
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, iguPUR
MAT90489379
igus

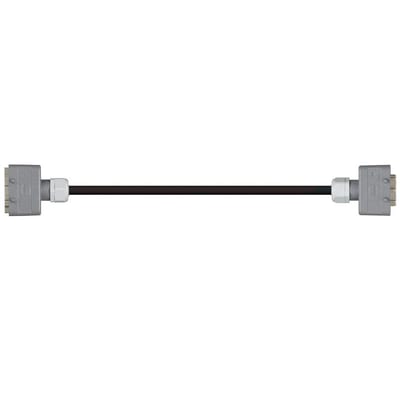

Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, TPE, Flame_retardant
MAT90489382
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, TPE, halogen free
MAT90489381
igus

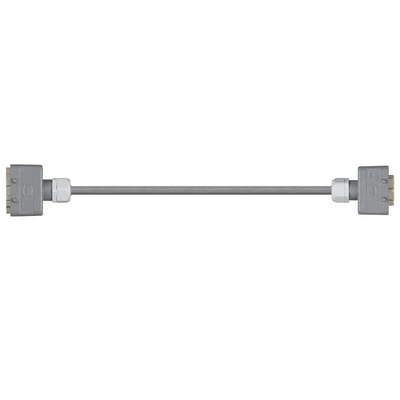

Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, PUR 10 x d
