Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, PVC 12.5 x d
Pricing
Request a quote
We reply within 24 hours
Product Description
Han 10B connector housing (pin) on Han 10B connector housing (socket), single locking lever, straight at both ends, PVC 12.5xd
Technical Specifications
- Manufacturer part number (MPN)
- MAT90489376
- Brand
- IGUS
- Category
- Tools
- Connector A
- Socket M25 insert 10+PE straight Cable entry
- Connector B
- Connector M25 insert 10+PE straight Cable entry
- Insert 1 HARTING Part No.
- 09330102702
- Insert 2 HARTING Part No.
- 09330102602
- Housing 1 HARTING Part No.
- 19300101441
- Housing series
- Han 10B
- Connector design
- straight cable entry on both sides
- Locking type
- single locking lever
- Number of cores and conductor nominal cross-section
- 12G1.5
- Copper index kg/km
- 186 kg/km
- Outer diameter (d) max. mm
- 12 mm
- Weight per km
- 260 kg/km
- Min. bend radius, e-chain (factor)
- 12.5 x d
- Min. bend radius, e-chain
- 150 mm
- Min. bend radius, flexible (factor)
- 10 x d
- Min. bend radius, flexible
- 120 mm
- Min. bend radius, fixed (factor)
- 7 x d
- Min. bend radius, fixed
- 84 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Unsupported up to 10 m
- torsion
- No Torsion
- Conductor
- Conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound with an optimised pitch length.
- Outer jacket
- Low-adhesion PVC mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 2000V (according to DIN EN 50395)
- Oil resistance
- No oil resistance
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10493 and 2464, 300 V, 80 °C
- UL verified
- Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8538.90
Cross References
- OEM-URL https://www.igus.com/product/MAT90489376
Product Documentation
More from igus
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, PVC 7.5 x d
MAT90489377
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, PVC 6.8 x d
MAT90489378
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, iguPUR
MAT90489379
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, TPE, Flame_retardant
MAT90489382
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, TPE, halogen free
MAT90489381
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, PUR 10 x d
MAT90489383
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, PUR_6.8 x d
MAT90489380
igus

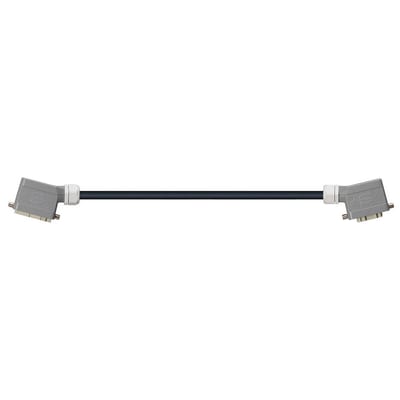

Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, angled, PVC 12.5 x d
