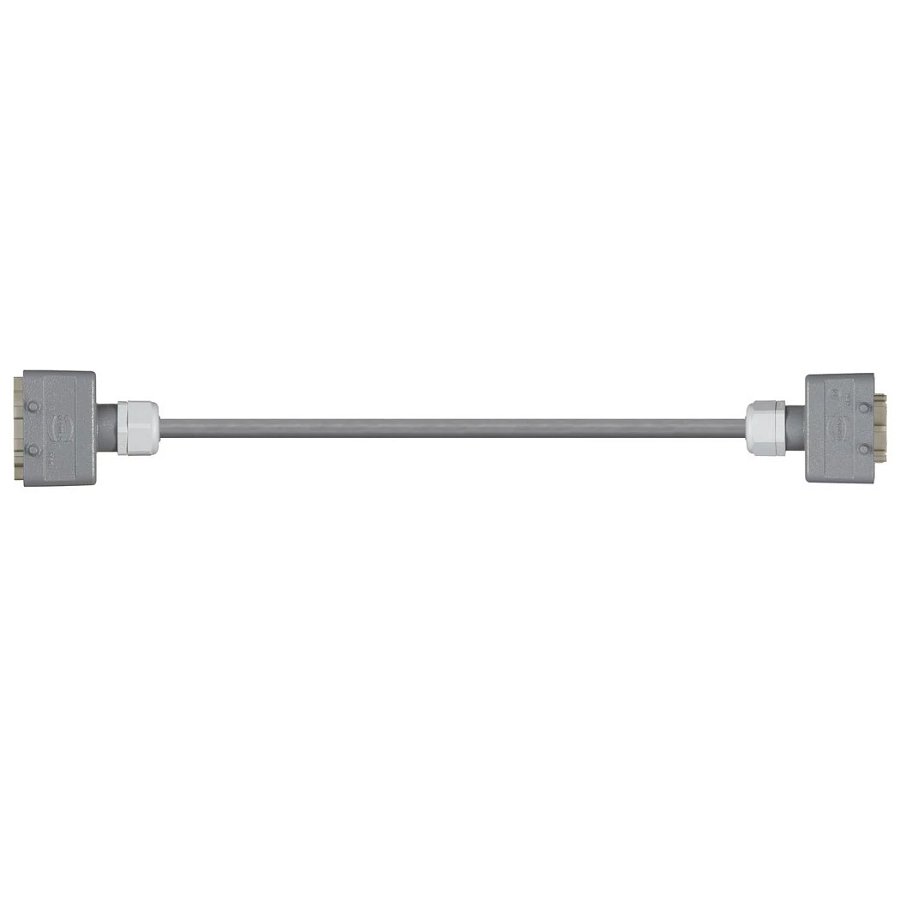

Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, straight, PUR_6.8 x d
Pricing
Request a quote
We reply within 24 hours
Product Description
Han 10B connector housing (pin) on Han 10B connector housing (socket), single locking lever, straight at both ends, PUR 6.8xd
Technical Specifications
- Manufacturer part number (MPN)
- MAT90489380
- Brand
- IGUS
- Category
- Tools
- Connector A
- Socket M25 insert 10+PE straight Cable entry
- Connector B
- Connector M25 insert 10+PE straight Cable entry
- Insert 1 HARTING Part No.
- 09330102702
- Insert 2 HARTING Part No.
- 09330102602
- Housing 1 HARTING Part No.
- 19300101441
- Housing series
- Han 10B
- Connector design
- straight cable entry on both sides
- Locking type
- single locking lever
- Number of cores and conductor nominal cross-section
- 12G1.5
- Copper index kg/km
- 179 kg/km
- Outer diameter (d) max. mm
- 13 mm
- Weight per km
- 297 kg/km
- Min. bend radius, e-chain (factor)
- 6.8 x d
- Min. bend radius, e-chain
- 88.4 mm
- Min. bend radius, flexible (factor)
- 5 x d
- Min. bend radius, flexible
- 65 mm
- Min. bend radius, fixed (factor)
- 4 x d
- Min. bend radius, fixed
- 52 mm
- Temperature e-chain®
- -25°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 5 m/s
- a max. (acceleration)
- 80 m/s²
- travel length
- Unsupported travel distances and up to 100 m for gliding applications
- v max., twisted (speed)
- 180 °/m
- torsion
- Torsion ±180°, with 1m cable length, Class 3
- Conductor
- Finely stranded conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound in bundles are then wound around a high tensile strength centre element, all with optimised short pitch lengths and directions. Especially low-torsion structure.
- Inner jacket
- TPE mixture adapted to suit the requirements in e-chains®.
- Outer jacket
- Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Window grey (comparable to RAL 7040)
- Nominal voltage
- 300/500V (according to DIN VDE 0298-3)
- Test voltage
- 2000V (according to DIN EN 50395)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1, material/cable tested by IPA according to DIN EN ISO standard 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 11323 and 21223, 1000 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- DESINA
- According to VDW, DESINA standardisation
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- DNV
- Type approval certificate TAE00003X1
- NFPA
- According to NFPA 79-2018, chapter 12.9
- Offshore
- MUD-resistant according to NEK 606 - status 2018
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8538.90
Cross References
- OEM-URL https://www.igus.com/product/MAT90489380
Product Documentation
More from igus
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, angled, PVC 12.5 x d
MAT90489384
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, angled, iguPUR
MAT90489387
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, angled, PVC 7.5 x d
MAT90489385
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, angled, PVC 6.8 x d
MAT90489386
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, angled, TPE, halogen free
MAT90489389
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, angled, PUR 10 x d
MAT90489391
igus
Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Single locking lever on both sides, angled, TPE, flame retardant
MAT90489390
igus

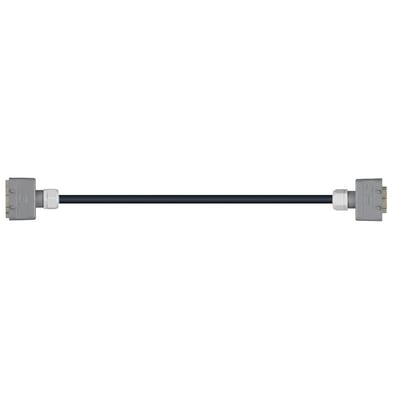

Han 10B Connector housing (pin) to Han 10B Connector housing (socket), Double locking lever on both sides, straight, PVC 12.5 x d
