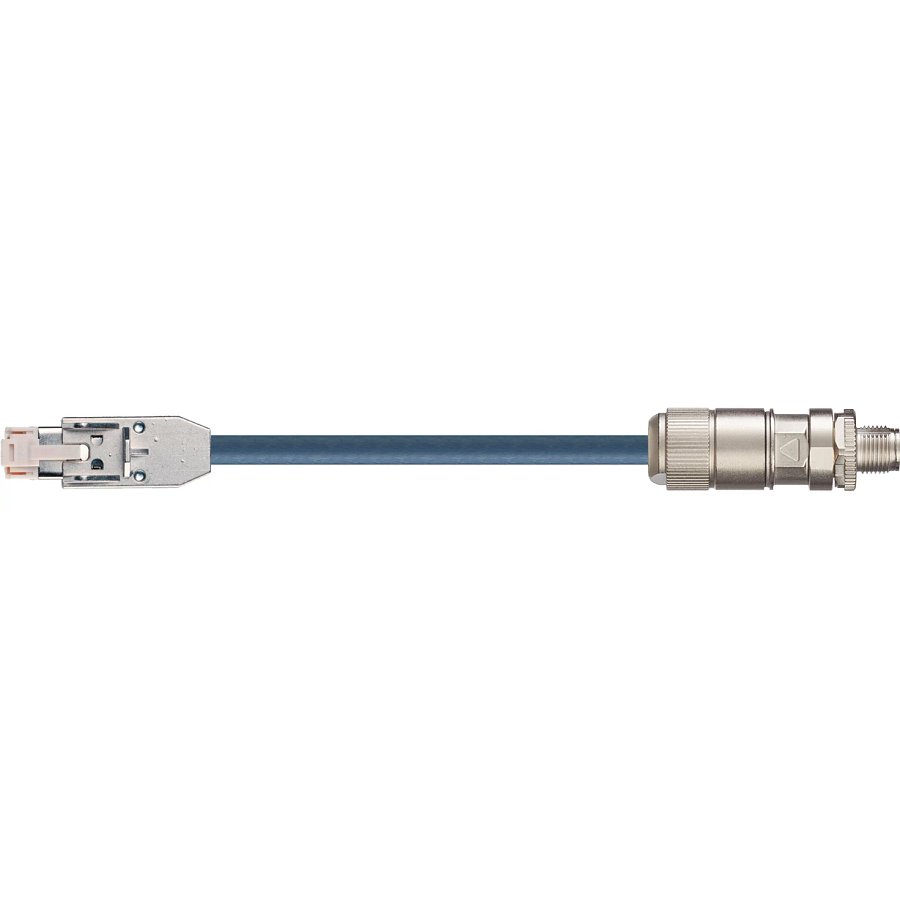

Connection cable suitable for Keyence IOP-87360 PUR, 10XD
Pricing
Request a quote
We reply within 24 hours
Overview
igus Connection cable suitable for Keyence IOP-87360 PUR, 10XD (part number MAT904194289) is listed under Safety & Detection / Tools. Bus system: Ethernet/CAT6/PoE; Copper index kg/km: 32 kg/km; Shipping weight (kg or kg/m): 0.087; Outer diameter (d) max. mm: 7.5 mm; Weight per km: 67 kg/km; Min. bend radius, e-chain: 75 mm.
Technical Specifications
- Manufacturer part number (MPN)
- MAT904194289
- Brand
- IGUS
- Category
- Tools
- Bus system
- Ethernet/CAT6/PoE
- Number of cores and conductor nominal cross-section
- (4x(2x0.15))C
- Copper index kg/km
- 32 kg/km
- Shipping weight (kg or kg/m)
- 0.087
- Outer diameter (d) max. mm
- 7.5 mm
- Weight per km
- 67 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 75 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 37.5 mm
- Temperature e-chain®
- -25°C up to +70°C
- Temperature, flexible
- -40°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- travel length
- Robots and motions in 3D area, Class 1
- v max., twisted (speed)
- 360 °/m
- torsion
- Torsion ±360°, with 1m cable length, Class 4
- Conductor
- Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- According to bus specification.
- Overall shield
- Torsion-resistant, tinned braided copper shield. Cover approx. 80% optical
- Outer jacket
- Low-adhesion, halogen-free PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Steel blue (comparable to RAL 5011)
- Nominal voltage
- 50V
- Test voltage
- 500V
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00295/19
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 1598 and 20236, 30 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
