Connection cable suitable for Keyence ICA-CH5RX, basic cable, 10XD, PVC (MAT904194293)
Pricing
Request a quote
We reply within 24 hours
Overview
igus Connection cable suitable for Keyence ICA-CH5RX, basic cable, 10XD, PVC (MAT904194293) is listed under Safety & Detection / Tools. Copper index kg/km: 64 kg/km; Shipping weight (kg or kg/m): 0.0014; Outer diameter (d) max. mm: 8.5 mm; Weight per km: 125 kg/km; Min. bend radius, e-chain: 85 mm; Min. bend radius, flexible: 68 mm.
Technical Specifications
- Manufacturer part number (MPN)
- ICA-CH5RX
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (24x0.14)C
- Copper index kg/km
- 64 kg/km
- Shipping weight (kg or kg/m)
- 0.0014
- Outer diameter (d) max. mm
- 8.5 mm
- Weight per km
- 125 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 85 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 68 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 42.5 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- v max. gliding (speed)
- 2 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Travels up to 50 m
- torsion
- No Torsion
- Conductor
- Very finely stranded special conductors of a particularly bend-resistant design, made of bare copper wires.
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- The individual cores are wound in layers with a short pitch length.
- Overall shield
- Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%
- Outer jacket
- Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).
- Outer jacket colour
- Silver grey (comparable to RAL 7001)
- Nominal voltage
- 300/300V (according to DIN VDE 0298-3)
- Test voltage
- 1500V (according to DIN EN 50395)
- Oil resistance
- Oil-resistant (according to DIN EN 50363-4-1), Class 2
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1, material/cable tested by IPA according to DIN EN ISO standard 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10493 and 2464, 300 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
Standards & Compliance
- HS Code
- 8544.42
Cross References
- OEM-URL https://www.igus.com/product/MAT904194293
Product Documentation
More from igus
igus
Connection cable suitable for Keyence ICA-CH10RX PUR, 10XD (MAT904194296)
igus
Connection cable suitable for Keyence IOP-87353, basic cable, 7.5XD, PVC (MAT904194297)
igus
Connection cable suitable for Keyence IOP-87354 PVC, 7.50XD (MAT904194300)
igus
Connection cable suitable for Keyence IOP-87355 PUR, 7.50XD (MAT904194304)
igus
Connection cable suitable for Keyence IOP-87230, basic cable, 12.5XD, PVC
MAT904194306
igus
Connection cable suitable for Keyence IOP-87230 PUR, 10XD
MAT904194308
igus

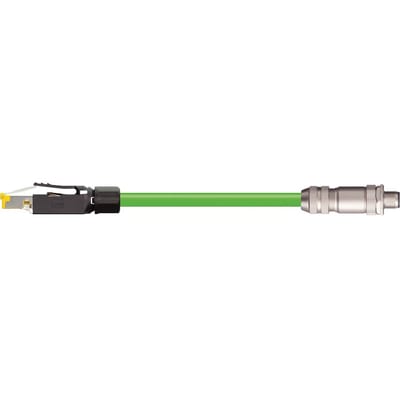

Connection cable suitable for Keyence IOP-87230 PUR, 12.50XD
