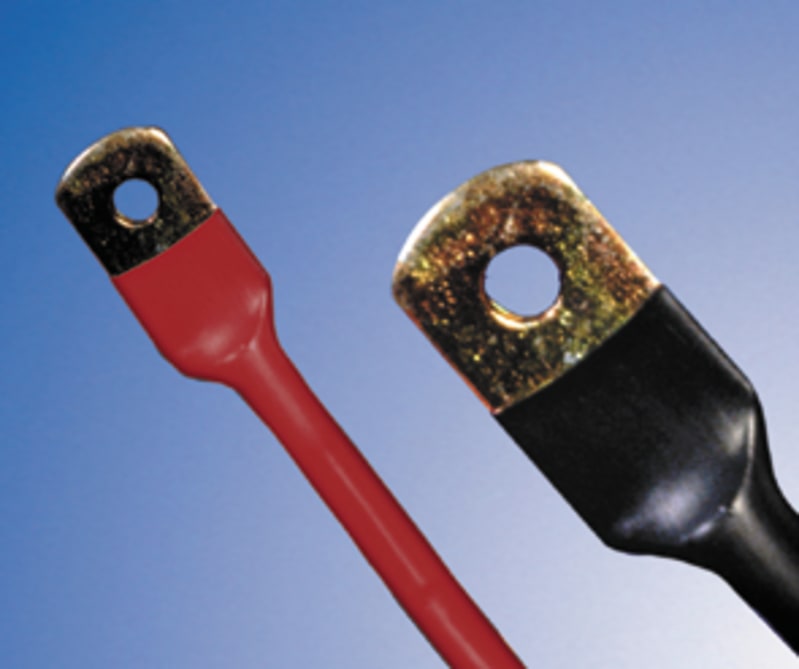

Heat Shrink Tubing MU47 63/19 mm 1 m Sv without Adhesive Lining

Hellermann 323-10630 MU47 63,0/19,0mm thick-walled shrink 1m without adhesive, black.

Manufacturer part number (MPN)

323-10630 EAN / GTIN: 4031026225333 Sales unit: pcs Package quantity: 6 pcs OEM part description: MU47-63/19-PO-X-BK Type: MU47-63/19 Product family: MU47 - medium wall unlined Serration: Medium-Wall material: Polyolefin, cross-linked (PO-X) Colour: Black (BK) Length: 1.0 m Wall thickness: 2.9 mm Supplied diameter (min.): 65.0 mm Recovered diameter (max.): 19.0 mm Operating temperature: -55 °C to +110 °C Halogen-free: Yes RoHS compliant: Yes ELV compliant (Article 4-2): Yes Hazardous goods: No Weight per unit: 0.28333 kg Packed in: pcs. Inner pack quantity: 1 Inner pack type: pcs. Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 39121723 Behaviour At Low Temperature: not cracking Behaviour at Heat Shock: not cracking, not fluid, not dripping Behaviour at low Temperature test method: ASTM D2671 Elongation At Heat Aging: 300 % Heat Aging Test: 168h/150°C Heat Aging test method: ASTM D2671 Heat Shock Test: 4h/225°C minimum Tensile Strength At Heat Aging: 12 MPa Printable: No Model: Medium-walled Wall thickness after shrinking: 2.8 mm Inner diameter before heat-shrink: 63 mm Inner diameter after heat-shrink: 19 mm Transparent: No With inner glue: No Shrink rate: 4:1 UL approval: No

HS Code

3917.32

• EAN 4031026225333
• SAP 1000057237
• Code 8897067
