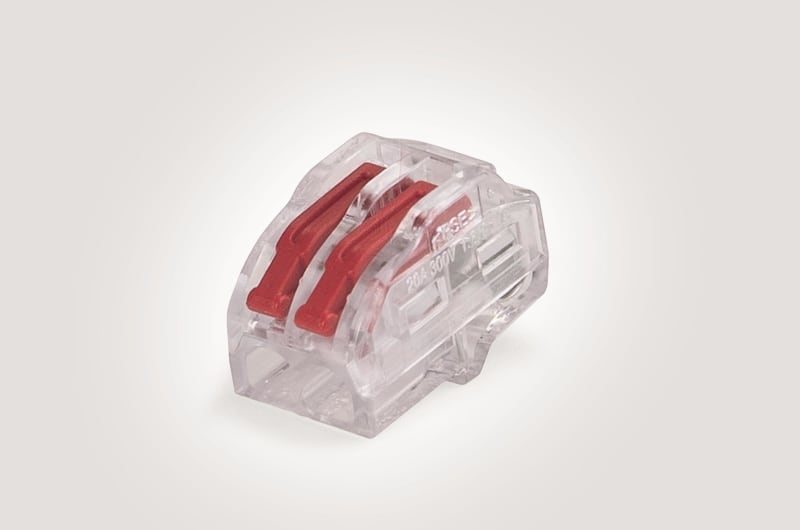

Hellermann HelaCon Plus HCRN-2 Releasable Push-In Terminal, 2-Way Transparent

Hellermann HCRN-2-Blister is a releasable 2-way push-in wiring terminal in the HelaCon Plus family, moulded in transparent polycarbonate with a lever release. Each pole accepts solid, stranded or flexible conductors from 0.2 to 4 mm² (AWG 24 to 12) with 10 mm strip length, at 32 A and 450 V. Operating temperature is -30 °C to +85 °C and the housing meets UL 94 V0 and is halogen-free. Package quantity is 10 pieces.

Manufacturer part number (MPN)

148-90062

EAN / GTIN

4031026657899

Sales unit

pcs

Package quantity

10 pcs

OEM part description

HCRN-2-Blister-PC-CL

Type

HCRN-2-Blister

Product family

HelaCon Plus Releasable

Material

Polycarbonate (PC)

Colour

Transparent (CL)

Length

12.0 mm

Width

20.5 mm

Height

14.0 mm

Operating temperature

-30 °C to +85 °C

Flammability rating

UL 94 V0

Halogen-free

Yes

RoHS compliant

Yes

ELV compliant (Article 4-2)

Yes

Standards

UL 486C

Hazardous goods

No

Weight per unit

0.003972 kg

Packed in

box

Inner pack quantity

10

Inner pack type

pack

Country of origin

CN

Customs tariff number

85369010

ETIM 9.0 class

EC000446

UNSPSC code

39131707

Max Current

32 A

Max Voltage

450 V

Number of Conductors

2

Suitable for flexible core (Yes/No)

Yes

Suitable for multi wire core (Yes/No)

Yes

Suitable for solid core (Yes/No)

Yes

Stripping Length

10 mm

Wire Range (VDE)

0.2 to 4.0 mm² all types of wire

UL File link

Link

Nominal current

32 A

Nominal voltage

450 V

Number of clamp positions

2

Cable diameter

0.5–2.5 mm

Suitable for solid conductors

Yes

Conductor cross section solid (solid, stranded)

0.5–4 mm²

Nominal cross section

0.2–4 mm²

Suitable for multi-wire conductors

Yes

Suitable for flexible conductors

Yes

Transparent

Yes

With operation lever

Yes

Min. AWG-size

24

Max. AWG-size

12

Type of locking/unlocking

Lever

HS Code

8536.90
