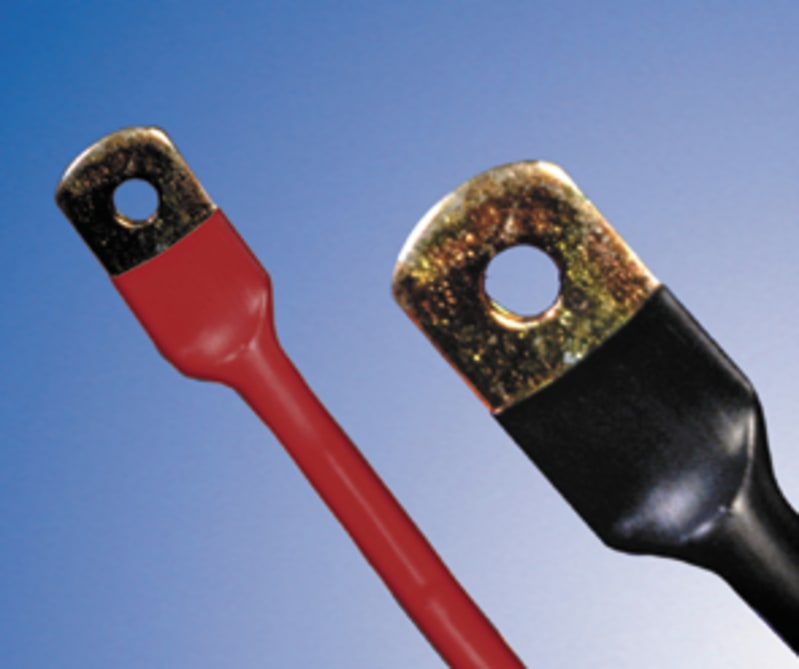

Heat Shrink Tubing MU47 50/16 mm 1 m SV without Adhesive Lining

Hellermann 323-10500 MU47 50,0/16,0mm thick-walled shrink 1m without adhesive, black.

Manufacturer part number (MPN)

323-10500 EAN / GTIN: 4031026225326 Sales unit: m Package quantity: 8 m OEM part description: MU47-50/16-PO-X-BK Type: MU47-50/16 Product family: MU47 - medium wall unlined Serration: Medium-Wall material: Polyolefin, cross-linked (PO-X) Colour: Black (BK) Length: 1.0 m Wall thickness: 2.9 mm Supplied diameter (min.): 55.0 mm Recovered diameter (max.): 16.0 mm Operating temperature: -55 °C to +110 °C Halogen-free: Yes RoHS compliant: Yes ELV compliant (Article 4-2): Yes Hazardous goods: No Weight per unit: 0.2 kg Packed in: pcs. Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 39121723 Behaviour At Low Temperature: not cracking Behaviour at Heat Shock: not cracking, not fluid, not dripping Behaviour at low Temperature test method: ASTM D2671 Elongation At Heat Aging: 300 % Heat Aging Test: 168h/150°C Heat Aging test method: ASTM D2671 Heat Shock Test: 4h/225°C minimum Tensile Strength At Heat Aging: 12 MPa Printable: No Shrink Ratio: up to 4:1 Voltage range: up to 1kV Model: Medium-walled Wall thickness after shrinking: 2.7 mm Inner diameter before heat-shrink: 50 mm Inner diameter after heat-shrink: 16 mm Transparent: No With inner glue: No Shrink rate: 4:1 UL approval: No

HS Code

3917.32

• EAN 4031026225326
• SAP 1000015648
• Code 8131621
