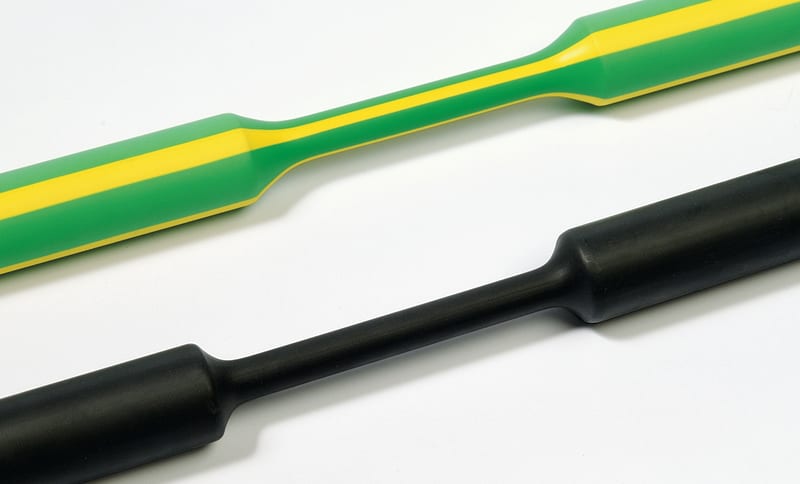

Heat Shrink Tubing 1.5/0.5 GG 20 x 1 m

Hellermann 319-00157 Heat-shrink tubing up to 3:1 1 m lengder TREDUX-1.5/0.5- Yellow/Green.

Manufacturer part number (MPN)

319-00157 EAN / GTIN: 4031026227641 Sales unit: pcs Package quantity: 20 pcs OEM part description: TREDUX-1.5/0.5-PO-X-GNYE Type: TREDUX-1.5/0.5 Product family: TREDUX - thin wall Serration: Thin-Wall material: Polyolefin, cross-linked (PO-X) Colour: Green-Yellow (GNYE) Length: 1.0 m Wall thickness: 0.45 mm Supplied diameter (min.): 1.5 mm Recovered diameter (max.): 0.5 mm Operating temperature: -55 °C to +135 °C Flammability rating: UL 224 VW-1 RoHS compliant: Yes ELV compliant (Article 4-2): Yes UL recognised (US and Canada): Yes Standards: ANSI/UL 224, C22.2 no. 198.1-06 Hazardous goods: No Weight per unit: 0.00243 kg Packed in: pcs. Inner pack quantity: 20 Inner pack type: carton Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 39121723 Behaviour at Heat Shock: not fluid, not dripping, not cracking Behaviour at low Temperature test method: UL 224 Elongation At Heat Aging: 400 % Heat Aging Test: 168h/175°C Heat Shock Test: 4h/250°C Heat shock test test method: UL 224 minimum Tensile Strength At Heat Aging: 11 MPa Model: Thin-walled Halogen free: No Wall thickness after shrinking: 0.5 mm Inner diameter before heat-shrink: 1.5 mm Inner diameter after heat-shrink: 0.5 mm Transparent: No Printable: Yes With inner glue: No Shrink rate: 3:1 UL approval: Yes

HS Code

3917.32

• EAN 4031026227641
• SAP 1000052552
• Code 8535784
