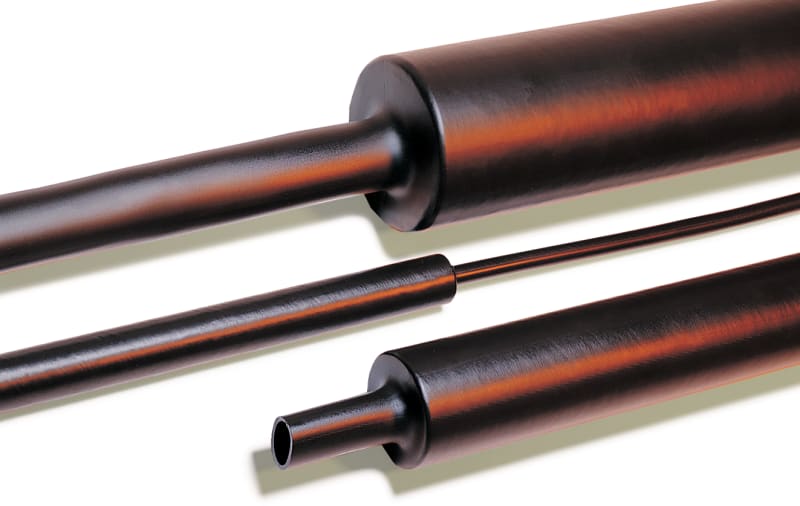

Hellermann MA47 Adhesive-Lined Heat Shrink Tubing 75/22 mm Black 1 m

Hellermann 323-20750 is an MA47 medium-wall adhesive-lined heat shrink sleeve with a 4:1 shrink ratio, supplied diameter 75 mm shrinking to 22 mm at 3 mm wall thickness. Cross-linked polyolefin construction, black, 1 m length. Operating temperature -55 C to +110 C, halogen-free and RoHS compliant.

Manufacturer part number (MPN)

323-20750 EAN / GTIN: 4031026240114 Sales unit: pcs OEM part description: MA47-75/22-PO-X-BK Type: MA47-75/22 Product family: MA47 - medium wall adhesive lined Serration: Medium-Wall material: Polyolefin, cross-linked (PO-X) Colour: Black (BK) Length: 1.0 m Wall thickness: 3.0 mm Supplied diameter (min.): 75.0 mm Recovered diameter (max.): 22.0 mm Operating temperature: -55 °C to +110 °C Halogen-free: Yes RoHS compliant: Yes ELV compliant (Article 4-2): Yes Hazardous goods: No Weight per unit: 0.342 kg Package content: 5 pcs. Packed in: pcs. Inner pack quantity: 5 Inner pack type: bag Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 39121723 Behaviour At Low Temperature: not cracking Behaviour at Heat Shock: not cracking, not fluid, not dripping Behaviour at low Temperature test method: ASTM D2671 Elongation At Heat Aging: 300 % Heat Aging Test: 168h/150°C Heat Aging test method: ASTM D2671 Heat Shock Test: 4h/225°C minimum Tensile Strength At Heat Aging: 12 MPa Printable: No Model: Medium-walled Wall thickness after shrinking: 3 mm Inner diameter before heat-shrink: 75 mm Inner diameter after heat-shrink: 22 mm Transparent: No With inner glue: Yes Shrink rate: 4:1 UL approval: No

HS Code

3917.32

• EAN 4031026240114
• SAP 1000722142
• Code 8450071
