Hellermann

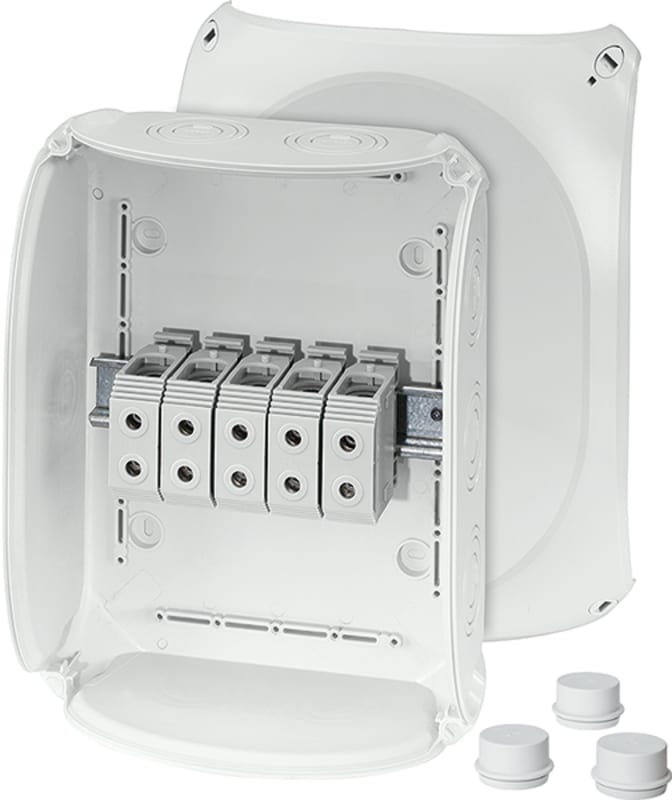

Junction box DK 3535 G 35mm²
Part numberDK 3535 GEAN / GTIN4012591125105HS code8536.90
Enclosures
Junction Boxes
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hellermann DK 3535 G Hensel DK junction box IP 66 with knockouts.
Technical Specifications
- Manufacturer part number (MPN)
- DK 3535 G
- EAN / GTIN
- 4012591125105
- Sales unit
- pcs
- Conductor cross-section
- 35 mm²
- Model
- Mounting box
- RAL-number (similar)
- 7035
- Max. conductor cross section
- 35 mm²
- Equipped with
- Screwed terminal
- Shape
- Rectangular
- Mounting method
- Wall-/ceiling mounting
- Mounting in the soil
- No
- Mounting under water
- No
- Inlet from the rear
- Yes
- Length
- 295 mm
- Width
- 225 mm
- Depth
- 122 mm
- Connectable
- No
- Number of inlets
- 12
- Type of housing feed-through
- Preembossing
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Grey
- Degree of protection (IP)
- IP66
- Transparent cover
- No
- Cover attachment
- Screwed
- Castable
- No
- Casting compound included
- No
- Sealable
- Yes
- Rated insulation voltage Ui
- 690 V
- Circuit integrity
- None
- With screening
- No
- Weatherproof
- No
- Operating temperature
- -25–70 °C
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4012591125105
- SAP 1200010913
- Code 8557620
Product Documentation
Document preview: Junction box DK 3535 G 35mm² — Specification sheet
More from Hellermann
Hellermann
Marking Tag M-BOSS 10X90MM
544-80102
Hellermann
HellermannTyton TEXTIE S 130-00012 Hook-and-Loop Cable Tie 150 x 13 mm Black
Hellermann
HellermannTyton MA47 323-20630 Heat-Shrink Tubing 63/19 mm Black 1 m
Hellermann
Cable tie Nat, T120I 300X7,6mm 100PK
111-12219
Hellermann
Glass Fuse 5X20 250V K 6,3A
7000134.6,3
Hellermann

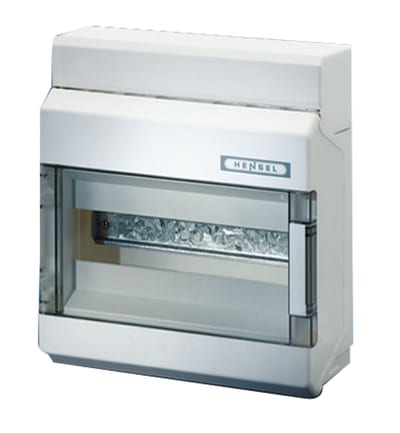

Fuse cabinet KV0112 IP40 clear door
KV 0112
Hellermann
Heat Shrink Tubing HA47 45/12 mm Black 1 m
321-50450
Hellermann

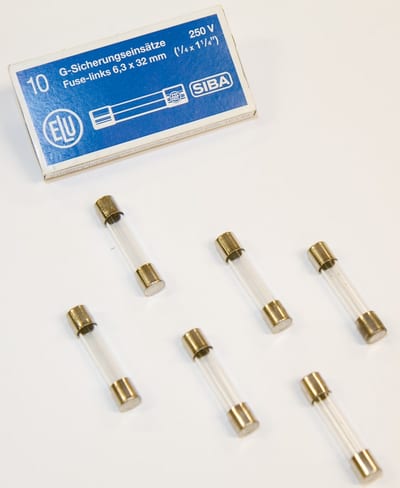

Glass Fuse 6X32 250V T 5A
