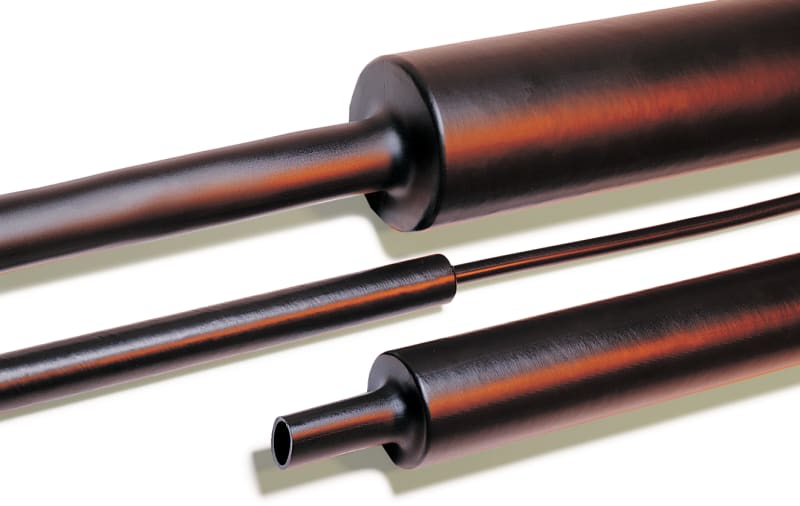

HellermannTyton MA47 323-20630 Heat-Shrink Tubing 63/19 mm Black 1 m

Medium-wall adhesive-lined heat-shrink tubing with a 4:1 shrink ratio, recovering from 63 mm to 19 mm inner diameter with a 2.8 mm wall after shrinking. Cross-linked polyolefin construction is resistant to solvents, acids and alkaline fluids and is rated for -55 C to +110 C. Used for environmental sealing and mechanical protection of cable joints, terminations and repairs.

Manufacturer part number (MPN)

323-20630 EAN / GTIN: 4031026250434 Sales unit: pcs OEM part description: MA47-63/19-PO-X-BK Type: MA47-63/19 Product family: MA47 - medium wall adhesive lined Serration: Medium-Wall material: Polyolefin, cross-linked (PO-X) Colour: Black (BK) Length: 1.0 m Wall thickness: 2.9 mm Supplied diameter (min.): 65.0 mm Recovered diameter (max.): 19.0 mm Operating temperature: -55 °C to +110 °C Halogen-free: Yes RoHS compliant: Yes ELV compliant (Article 4-2): Yes Hazardous goods: No Weight per unit: 0.28 kg Package content: 6 pcs. Packed in: pcs. Inner pack quantity: 6 Inner pack type: bag Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 39121723 Behaviour At Low Temperature: not cracking Behaviour at Heat Shock: not cracking, not fluid, not dripping Behaviour at low Temperature test method: ASTM D2671 Elongation At Heat Aging: 300 % Heat Aging Test: 168h/150°C Heat Aging test method: ASTM D2671 Heat Shock Test: 4h/225°C minimum Tensile Strength At Heat Aging: 12 MPa Printable: No Model: Medium-walled Wall thickness after shrinking: 2.8 mm Inner diameter before heat-shrink: 63 mm Inner diameter after heat-shrink: 19 mm Transparent: No With inner glue: Yes Shrink rate: 4:1 UL approval: No

HS Code

3917.32

• EAN 4031026250434
• SAP 1000722141
• Code 8450067
