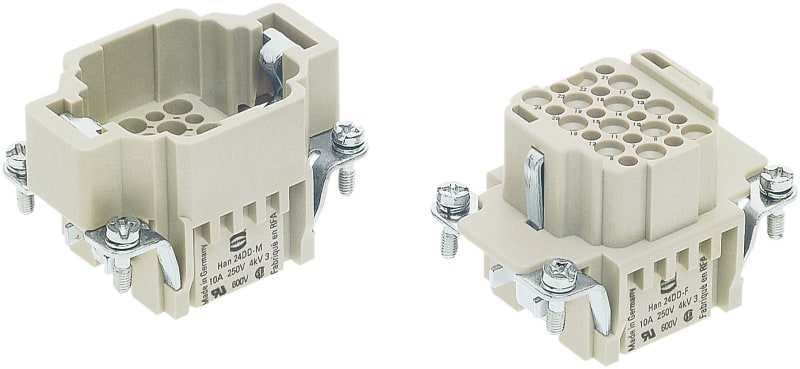

Han 24DD-SMC-MI-CRT (09160243001)
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09160243001 Manufacturer description: Inserts; Crimp termination; Male; RAL 7032 (pebble grey); Rated current: 10 A; Size: 6 B; Contacts: 24; Conductor cross-section: 0.14. 2.5 mm². Han DD® Plug 24-pole for crimp, 10A 250V.
Technical Specifications
- Manufacturer part number (MPN)
- 09160243001
- EAN / GTIN
- 5713140023727
- Sales unit
- pcs
- Category
- Inserts
- Series
- Han DD®
- Termination method
- Crimp termination
- Gender
- Male
- Size
- 6 B
- Number of contacts
- 24
- PE contact
- Yes
- Details
- Please order crimp contacts separately.
- Conductor cross-section (mm²)
- 0.14 ... 2.5 mm²
- Rated voltage acc. to CSA
- 600 V
- Rated current
- 10 A
- Rated voltage
- 250 V
- Rated impulse voltage
- 4 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 600 V
- Insulation resistance
- >10¹⁰ Ω
- Limiting temperature
- -40 ... +125 °C
- Tightening torque
- 1.2 Nm PE screw M4
- Recommended screw driver
- Slotted 0.8 x 4.5 | PH2
- Mating cycles
- 500
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Nickel
- Colour (insert)
- RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076
- Approvals
- DNV GL
- Specifications
- IEC 60664-1 | IEC 61984
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 3.9 g
- Country of origin
- Romania
- eCl@ss
- 27440205 Contact insert for industrial connectors
- ETIM
- EC000438
- UNSPSC 24.0
- 39121522
- Width
- 34 mm
- Height
- 50.8 mm
- Depth
- 33.6 mm
- Shape
- Rectangular
- With wire protection
- No
- With housing
- No
- Suitable for distribution board
- Yes
- Number of poles
- 24
- Contact type
- Pin
- Ambient temperature
- -40–125 °C
- Operating temperature
- -40–125 °C
- Rated surge voltage
- 4 kV
- Type of electric connection
- Crimp connection
- Overvoltage category
- III
- Diameter plug-in contact
- 1.6 mm
- Contact insert without contacts
- No
- Connectable conductor cross section solid-core
- 0.14–2.5 mm²
- Connectable conductor cross section multi-wired
- 0.14–2.5 mm²
- With protective conductor
- Yes
- Rated current In
- 10 A
- Min. number of insertion cycles
- 500
- Number of power contacts
- 24
