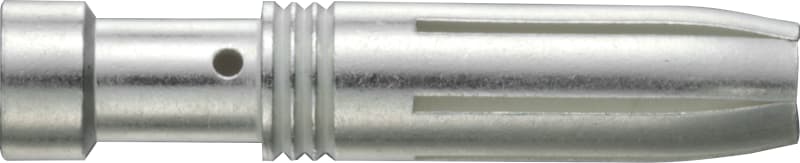

Han E F Crimp Contact Ag 2.5 mm²/ 14 AWG
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09330006202 Manufacturer description: Crimp contact; Rated current: ≤16 A; Female; Copper alloy; Silver plated; Conductor cross-section: 2.5 mm²; AWG 14. HAN E F CRIMP CONTACT AG 2.5 MM/14AWG.
Technical Specifications
- Manufacturer part number (MPN)
- 09330006202
- EAN / GTIN
- 5713140049932
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Category
- Contacts
- Type of contact
- Crimp contact
- Series
- Han E®
- Termination method
- Crimp termination
- Gender
- Female
- Contact identification
- 3 grooves
- Manufacturing process
- Turned contacts
- Conductor cross-section (mm²)
- 2.5 mm²
- Conductor cross-section (AWG)
- AWG 14
- Rated current
- 16 A
- Contact resistance
- 1 mΩ
- Stripping length
- 7.5 mm
- Mating cycles
- 500
- ECHA SCIP number
- b51e5b97-eeb5-438b-8538-f1771d43c17d
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (contacts)
- Copper alloy
- Surface (contacts)
- Silver plated
- Specifications
- IEC 60664-1 | IEC 61984
- European customs tariff number
- 85366990
- Packaging size
- 100
- Net weight
- 1.499 g
- Country of origin
- Germany
- eCl@ss
- 27440204 Contact for industrial connectors
- UNSPSC 24.0
- 39121522
- Mounting method
- Inserted
- Contact type
- Bus
- Ambient temperature
- -40–125 °C
- Type of electric connection
- Crimp connection
- Material of contact surface
- Silver
- Strip length
- 7.5 mm
- Diameter plug-in contact
- 4.5 mm
- Connectable conductor cross section multi-wired
- 2.5 mm²
- Max. rated current of one contact
- 16 A
- Material contact
- Other copper alloys
- Min. number of insertion cycles
- 500
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 5713140049932
- SAP 1000444502
- Code 8128120
Product Documentation
More from Harting
Harting
Harting Han Insertion Tool for Crimp Contacts
09990000059
Harting
Han 2MOD agg (09140020301)
Harting
Hexagonal Screw Driver SW 2
09990000313
Harting
Ha-VIS eCon 2061BT-AF-P
24020061220
Harting
Han CGM-M M20X1,5 D.10-14MM
19000005084
Harting
has-port protection cover IP65/67 trans.
09455020005
Harting
Han 10A-STI-C (09200103001)
Harting
Han K 6/12 POS. M Insert
09380182601
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 09330006202?
- 09330006202 can be ordered from cballast.com as a Harting catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Harting product?
- The manufacturer part number is 09330006202.
- What is the HS code for 09330006202?
- The customs tariff (HS) code for 09330006202 is 8536.69.
- Who manufactures 09330006202?
- 09330006202 is a Harting product in the Electrical Components range.
- Is a datasheet available for 09330006202?
- Yes — the 09330006202 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 09330006202?
- The minimum order quantity is 1.
- Is 09330006202 available?
- Yes — 09330006202 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
