Harting

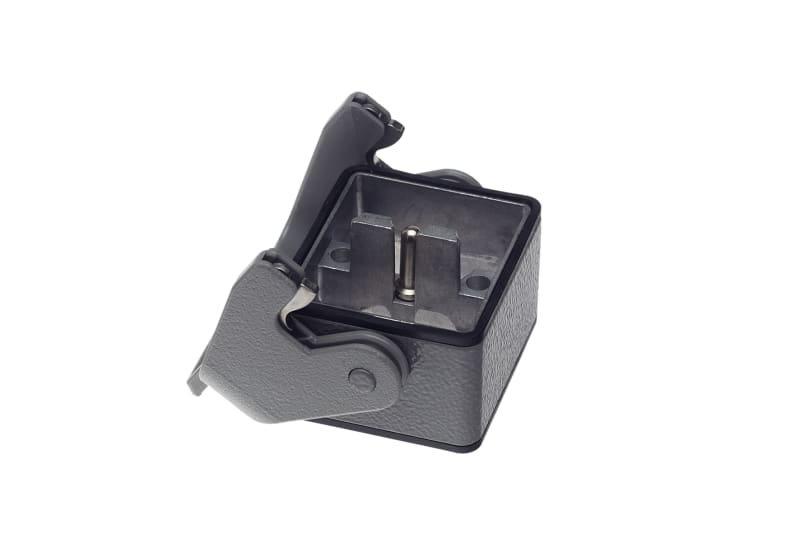

Han 2MOD agg (09140020301)
Part number09140020301EAN / GTIN5713140019546HS code8536.90
Electrical Components
Heavy-Duty Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09140020301 Manufacturer description: Bulkhead mounted housing; Size: Modular Twin; Single locking lever; Polycarbonate (PC), Stainless steel; Material (hood/housing): Aluminium die-cast; Powder-coated; RAL 7037 (dust grey); Material (seal): NBR. Han-Modular® Twin Chassis cover.
Technical Specifications
- Manufacturer part number (MPN)
- 09140020301
- EAN / GTIN
- 5713140019546
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han-Modular® Twin
- Type of hood/housing
- Bulkhead mounted housing
- Locking type
- Single locking lever
- Size
- Modular Twin
- Han-Easy Lock®
- Yes
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Stripping length
- 10 mm PE contact
- Tightening torque
- 1 Nm PE screw
- Mating cycles
- 500
- Degree of protection acc. to IEC 60529
- IP65
- ECHA SCIP number
- 2d63e3a4-7abb-4e67-bb13-55bff2df44a0
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead | Nickel
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (hood/housing)
- Aluminium die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- RAL 7037 (dust grey)
- Material (seal)
- NBR
- Material (locking)
- Polycarbonate (PC) | Stainless steel
- Colour (locking)
- RAL 7037 (dust grey)
- Material flammability class acc. to UL 94 (locking levers)
- V-0
- Approvals
- CE
- Specifications
- IEC 61984
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 78.5 g
- Country of origin
- Romania
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
- Width
- 65 mm
- UV resistant
- No
- Height
- 26 mm
- Depth
- 44 mm
- With hinged lid
- No
- Housing colour
- Grey
- Type of locking
- Single locking lever
- Number of conduit inlets
- 1
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- No
- Housing material
- Aluminium
- Coating housing
- Powder coating
- Operating temperature
- -40–125 °C
- With distance piece
- No
- With sealing
- Yes
- Type of housing
- Housing extension
- Degree of protection (IP), mounted
- IP65
- Material adaptor plate
- Aluminium
- Position of the shackle
- Base unit
- Mounting method of the cable gland
- None
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5713140019546
- SAP 1200148097
- Code 82036702
Product Documentation
Document preview: HARTING 09140020301 — Data Sheet (OEM)
