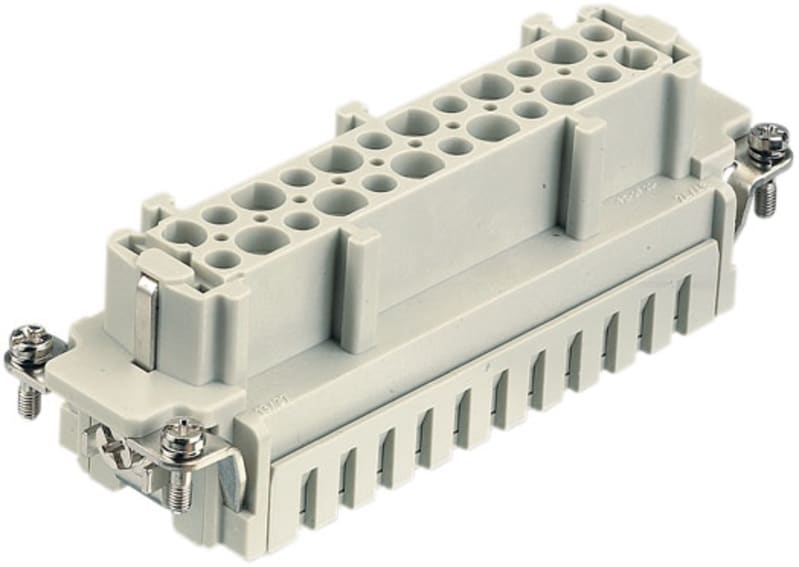

Han 24 ES Insert-F (09330242716)
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09330242716 Manufacturer description: Inserts; Cage-clamp termination; Female; Polycarbonate (PC); RAL 7032 (pebble grey); Rated current: 16 A; Size: 24 B; Contacts: 24; Conductor cross-section: 0.14. 2.5 mm²; Copper alloy; Silver plated. Han® ES Plinth insert with spring terminals, 24+ground, 16 Amp, size 24B, for cable 0,14 - 2,5mm2.
Technical Specifications
- Manufacturer part number (MPN)
- 09330242716
- EAN / GTIN
- 5713140052024
- HS code
- 8544.42
- Sales unit
- pcs
- Category
- Inserts
- Series
- Han® ES
- Termination method
- Cage-clamp termination
- Gender
- Female
- Size
- 24 B
- Number of contacts
- 24
- PE contact
- Yes
- Conductor cross-section (mm²)
- 0.14 ... 2.5 mm²
- Conductor cross-section (AWG)
- AWG 26 ... AWG 14
- Rated voltage acc. to CSA
- 600 V
- Rated current
- 16 A
- Rated voltage
- 500 V
- Rated impulse voltage
- 6 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 600 V
- Insulation resistance
- >10¹⁰ Ω
- Contact resistance
- 3 mΩ
- Limiting temperature
- -40 ... +125 °C
- Stripping length
- 7 ... 9 mm
- Tightening torque
- 1.2 Nm PE screw M4
- Recommended screw driver
- Slotted 0.8 x 4.5 | PH2
- Mating cycles
- 500
- ECHA SCIP number
- 1e38d35d-d1be-4585-8e03-95faccd739bf
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead | Nickel
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (insert)
- Polycarbonate (PC)
- Colour (insert)
- RAL 7032 (pebble grey)
- Material (contacts)
- Copper alloy
- Surface (contacts)
- Silver plated
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | UL 2237 PVVA2.E318390 | CSA-C22.2 No. 182.3 PVVA8.E318390
- Approvals
- DNV GL
- Specifications
- IEC 60664-1 | IEC 61984
- European customs tariff number
- 85366990
- Packaging size
- 1
- Net weight
- 115 g
- Country of origin
- Germany
- eCl@ss
- 27440205 Contact insert for industrial connectors
- UNSPSC 24.0
- 39121522
