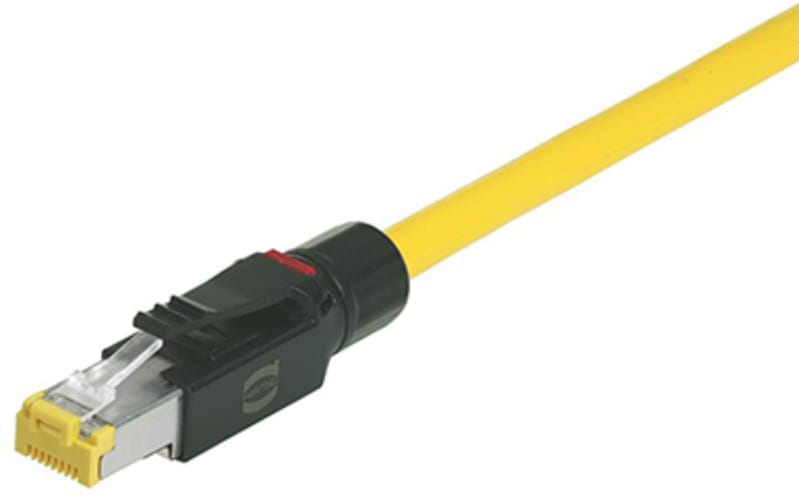

RJI 10G RJ45 plug CAT6, 8P IDC straight

Harting 09451511560 Manufacturer description: Connectors; Cable connector PROFINET, Straight; IDC insulation displacement termination; Rated current: 1.75 A; Contacts: 8; Copper alloy; Material: Polyamide (PA); Degree of protection: IP20. RJ45 8P Field Plug IP20.

Manufacturer part number (MPN)

09451511560

EAN / GTIN

5713140059443

Sales unit

pcs

Category

Connectors

Element

Cable connector

Specification

PROFINET | Straight

Series

HARTING RJ Industrial® | RJ45

Features

Suitable for all PoE versions

Termination method

IDC insulation displacement termination

Shielding

Fully shielded, 360° shielding contact

Number of contacts

8

Conductor cross-section (mm²)

0.1 ... 0.32 mm² solid and stranded

Conductor cross-section (AWG)

AWG 27/7 ... AWG 22/7 Stranded | AWG 27/1 ... AWG 22/1 Solid

Wire outer diameter

≤1.6 mm

Rated voltage

50 V AC | 60 V DC

Rated current

1.75 A

Insulation resistance

> 5 x 10⁹ Ω

Contact resistance

20 mΩ

Limiting temperature

-40 ... +70 °C

Relative humidity

95 % Non-condensing (operation)

Insertion force

25 N

Withdrawal force

25 N

Mating cycles

750

Degree of protection acc. to IEC 60529

IP20

Cable diameter

4.5 ... 9 mm

Test voltage UDC

1 kV (contact-contact) | 1.5 kV (contact-ground)

Transmission characteristics

Cat. 6 Class EA up to 500 MHz

Data rate

10 Mbit/s | 100 Mbit/s | 1 Gbit/s | 2.5 Gbit/s | 5 Gbit/s | 10 Gbit/s

Vibration resistance

10-500 Hz, 5 g, 0.35 mm, 2h/axis | 7.9 m/s² acc. to IEC 61373 Category 1 Class B

Shock resistance

25 g / 11 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B

ECHA SCIP number

d361ed36-dee0-4df8-9f2e-b62dd7563c1a

Fire protection on railway vehicles

EN 45545-2 (2020-08) + A1 (2023-10)

China RoHS

e

RoHS

compliant

REACH SVHC substances

Yes | 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

Requirement set with Hazard Levels

R26

ELV status

compliant

California Proposition 65 substances

Not contained

Material (insert)

Thermoplastic resin (PBT)

Colour (insert)

Yellow

Material (contacts)

Copper alloy

Material (hood/housing)

Polyamide (PA)

Colour (hood/housing)

Black

Material flammability class acc. to UL 94

V-0

UL / CSA

UL 1977 ECBT2.E102079 | CSA-C22.2 No. 182.3 ECBT8.E102079

PROFINET

Yes

Approvals

DNV GL

Specifications

IEC 60603-7 Mating face | ISO/IEC 11801 | EN 50173-1 | EN 45545-2

European customs tariff number

85366990

Packaging size

1

Net weight

20.29 g

Country of origin

Romania

eCl@ss

27440114 Rectangular connector (for field assembly)

ETIM

EC002636

UNSPSC 24.0

39121408

Width

13.1 mm

Height

16.11 mm

Depth

57 mm

Number of poles

8

Rated current In

1.75 A

Pollution degree

2

Connectable conductor cross section solid-core

0.1–0.32 mm²

Connectable conductor cross section multi-wired

0.1–0.32 mm²

Type of electric connection

Insulation displacement connection

Material contact

Other copper alloys

Material insulation body

Polybutylene terephthalate (PBT)

Housing material

Plastic

With protective conductor

No

Operating temperature

-40–70 °C

Degree of protection (IP), mounted

IP20

EMC-version

Yes

Number of conduit inlets

1

With sealing

No

HS Code

8536.90
