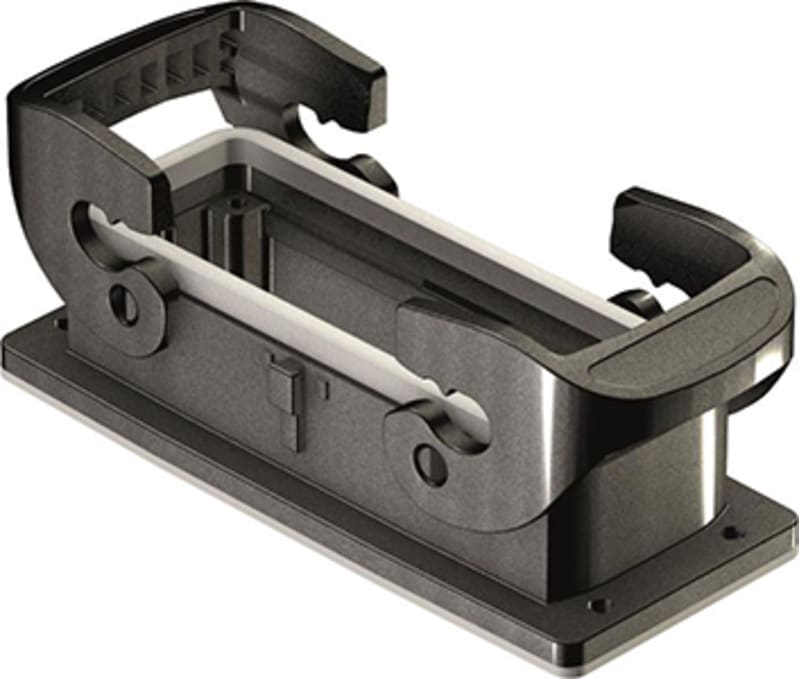

Han-Eco 24B Outd-HBM-with DL
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 19432240320 Manufacturer description: Bulkhead mounted housing; Size: 24 B; Double locking lever; Polyamide (PA), Fibre-glass reinforced; Material (hood/housing): Polyamide (PA), Fibre-glass reinforced; RAL 9005 (jet black); Material (seal): FPM. Han-Eco 24B Chassis cover, outdoor.
Technical Specifications
- Manufacturer part number (MPN)
- 19432240320
- EAN / GTIN
- 5713140180215
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han-Eco® B
- Type of hood/housing
- Bulkhead mounted housing
- Locking type
- Double locking lever
- Size
- 24 B
- Field of application
- Hoods/housings for outdoor applications
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Tightening torque
- 1 Nm Fixing screws M4
- Number of relockings
- 500
- Degree of protection acc. to IEC 60529
- IP66
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant
- California Proposition 65 substances
- Yes
- Material (hood/housing)
- Polyamide (PA) | Fibre-glass reinforced
- Colour (hood/housing)
- RAL 9005 (jet black)
- Material (seal)
- FPM
- Colour (seal)
- RAL 7001 (silver-grey)
- Material (locking)
- Polyamide (PA) | Fibre-glass reinforced
- Colour (locking)
- RAL 9005 (jet black)
- Material flammability class acc. to UL 94
- V-0
- Material flammability class acc. to UL 94 (locking levers)
- V-0
- Approvals
- CE
- Specifications
- IEC 61984 | EN 45545-2 Fire protection on railway vehicles
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 150 g
- Country of origin
- Germany
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
- Width
- 60 mm
- UV resistant
- Yes
- Height
- 36 mm
- Depth
- 36.1 mm
- With hinged lid
- No
- Housing colour
- Black
- Type of locking
- Double locking lever
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- No
- Housing material
- Plastic
- Operating temperature
- -40–125 °C
- With distance piece
- No
- Number of openings
- 1
- With sealing
- Yes
- Type of housing
- Housing extension
- Degree of protection (IP), mounted
- IP66
- Material adaptor plate
- Plastic
- Position of the shackle
- Base unit
- Mounting method of the cable gland
- None
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 5713140180215
- SAP 1200592423
- Code 82971871
