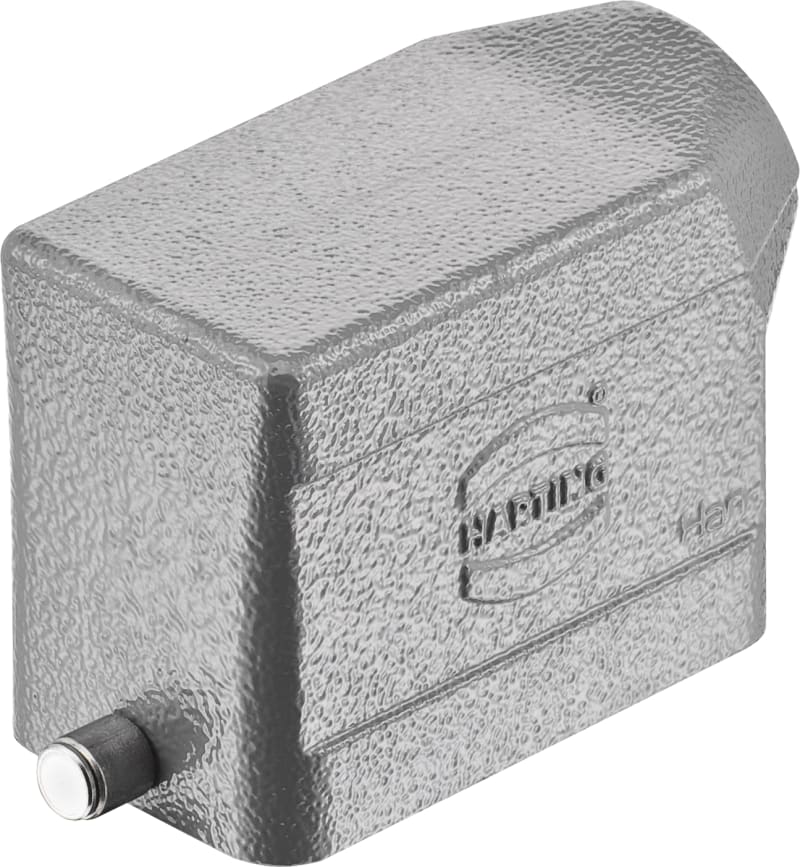

Han B Hood Side Entry LC 2 Reels M20
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 19300101540 Manufacturer description: Hood; Size: 10 B; Low construction; Single locking lever; Side entry; 1x M20; Material (hood/housing): Aluminium die-cast; Powder-coated; RAL 7037 (dust grey). HAN B HOOD SIDE ENTRY LC 2 REELS M20.
Technical Specifications
- Manufacturer part number (MPN)
- 19300101540
- EAN / GTIN
- 5713140125797
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han® B
- Type of hood/housing
- Hood
- Type
- Low construction
- Locking type
- Single locking lever
- Size
- 10 B
- Version
- Side entry
- Number of cable entries
- 1
- Cable entry
- 1x M20
- Field of application
- Standard hoods/housings for industrial connectors
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Mating cycles
- 500
- Degree of protection acc. to IEC 60529
- IP65 | IP66 | IP67
- Type rating acc. to UL 50 / UL 50E
- 4 | 4X | 12
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R1 (HL 1-3) | R7 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Nickel
- Material (hood/housing)
- Aluminium die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- RAL 7037 (dust grey)
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076
- Approvals
- CE | DNV GL
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 141 g
- Country of origin
- Germany
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
- Width
- 43 mm
- UV resistant
- No
- Height
- 57 mm
- Depth
- 57 mm
- Shape
- Rectangular
- With hinged lid
- No
- Housing colour
- Grey
- Type of locking
- Single locking lever
- Number of conduit inlets
- 1
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- No
- Length
- 43 mm
- Housing material
- Aluminium
- Coating housing
- Powder coating
- Operating temperature
- -40–125 °C
- With distance piece
- No
- With sealing
- No
- Type of housing
- Plug case
- With interlocking device
- Yes
- Degree of protection (IP), mounted
- IP65
- Position cable feed
- Sideways
- Position of the shackle
- Base unit
- Mounting method of the cable gland
- Metric
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 5713140125797
- SAP 1000444769
- Code 8542634
Product Documentation
More from Harting
Harting
Han K 8/0 Pos. Insert 100 Amp. 10-25mm
09380082753
Harting
Han 3A-HSM ANGLED-L-M20
19200031250
Harting
Han 16B Hood side entry M25
19300161541
Harting
Han B Protect Cover Die Cast for Hood PG (09300065423)
Harting
HPP V4 plug protection cover IP65/67
9458450010
Harting
Han hinged frame plus, for 2 modules A-B (09140060361)
Harting
PushPull V4 plug, RJ45, CAT.6, IDC
09451451561
Harting
Han 3A-HBMA/P-DL-grey (09200030820)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 19300101540?
- 19300101540 can be ordered from cballast.com as a Harting catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Harting product?
- The manufacturer part number is 19300101540.
- What is the HS code for 19300101540?
- The customs tariff (HS) code for 19300101540 is 8538.90.
- Who manufactures 19300101540?
- 19300101540 is a Harting product in the Electrical Components range.
- Is a datasheet available for 19300101540?
- Yes — the 19300101540 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 19300101540?
- The minimum order quantity is 1.
- Is 19300101540 available?
- Yes — 19300101540 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
