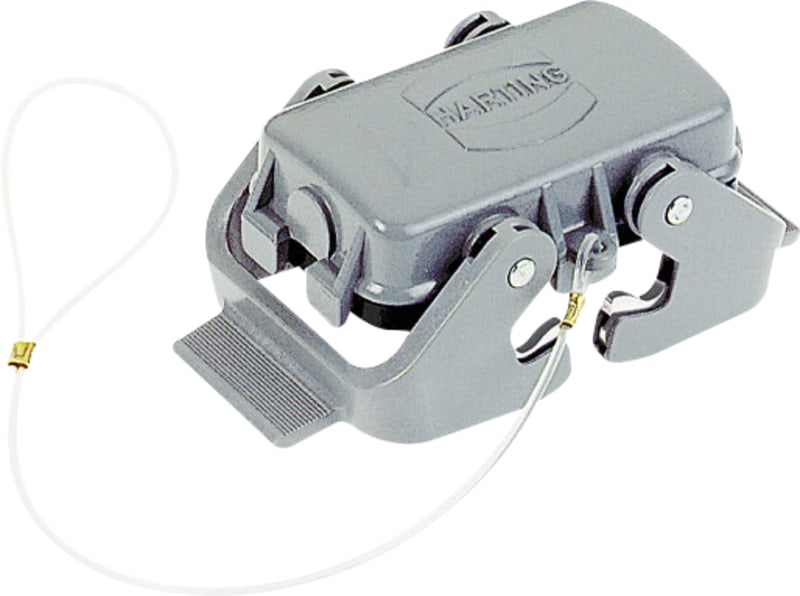

Han 10B Protect Cover Die Cast
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09300105423 Manufacturer description: Protection cover; for hoods, with fixing cord; Size: 10 B; Double locking lever; Polycarbonate (PC), Stainless steel; Material (hood/housing): Metal; Material (seal): NBR; Degree of protection: IP65. HAN B PROTECT COVER DIE CAST.
Technical Specifications
- Manufacturer part number (MPN)
- 09300105423
- EAN / GTIN
- 5713140045347
- Sales unit
- pcs
- Category
- Accessories
- Series of hoods/housings
- Han® B
- Type of accessory
- Protection cover
- Description of the accessory
- for hoods | With fixing cord
- Locking type
- Double locking lever
- Size
- 10 B
- Han-Easy Lock®
- Yes
- Limiting temperature
- -40 ... +125 °C
- Degree of protection acc. to IEC 60529
- IP65
- Type rating acc. to UL 50 / UL 50E
- 4 | 4X | 12
- ECHA SCIP number
- 60b1a572-bb3f-476f-9307-b7d1688bd90c
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Yes | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Lead | Nickel
- Material (hood/housing)
- Metal
- Material (seal)
- NBR
- Material (locking)
- Polycarbonate (PC) | Stainless steel
- Colour (locking)
- RAL 7037 (dust grey)
- Material flammability class acc. to UL 94 (locking levers)
- V-0
- Approvals
- DNV GL
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 31 g
- Country of origin
- Germany
- eCl@ss
- 27440208 Cap for industrial connectors
- ETIM
- EC002314
- UNSPSC 24.0
- 39121467
- With sealing
- Yes
- With captivity element
- No
- Ambient temperature
- -40–125 °C
- Degree of protection (IP), mounted
- IP65
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 5713140045347
- SAP 1000598779
- Code 8209028
Product Documentation
