Harting

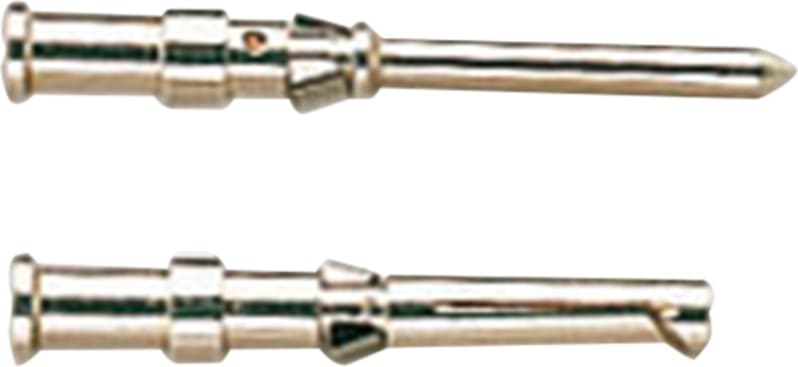

Han D F Crimp Contact Ag AWG 16
Part number09150006201EAN / GTIN5713140022041HS code8536.69
Electrical Components
Heavy-Duty Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09150006201 Manufacturer description: Crimp contact; Rated current: ≤10 A; Female; Copper alloy; Silver plated; Conductor cross-section: 1.5 mm²; AWG 16. HAN D F CRIMP CONTACT AG AWG 16.
Technical Specifications
- Manufacturer part number (MPN)
- 09150006201
- EAN / GTIN
- 5713140022041
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Category
- Contacts
- Type of contact
- Crimp contact
- Series
- Han D®
- Termination method
- Crimp termination
- Gender
- Female
- Manufacturing process
- Turned contacts
- Conductor cross-section (mm²)
- 1.5 mm²
- Conductor cross-section (AWG)
- AWG 16
- Rated current
- 10 A
- Contact resistance
- 3 mΩ
- Stripping length
- 8 mm
- Mating cycles
- 500
- ECHA SCIP number
- b51e5b97-eeb5-438b-8538-f1771d43c17d
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (contacts)
- Copper alloy
- Surface (contacts)
- Silver plated
- Specifications
- IEC 60664-1 | IEC 61984
- European customs tariff number
- 85366990
- Packaging size
- 100
- Country of origin
- Germany
- eCl@ss
- 27440204 Contact for industrial connectors
- ETIM
- EC000796
- UNSPSC 24.0
- 39121522
- Mounting method
- Inserted
- Contact type
- Bus
- Ambient temperature
- -40–125 °C
- Type of electric connection
- Crimp connection
- Material of contact surface
- Silver
- Strip length
- 8 mm
- Diameter plug-in contact
- 1.6 mm
- Connectable conductor cross section multi-wired
- 1.5 mm²
- Max. rated current of one contact
- 10 A
- Material contact
- Other copper alloys
- Min. number of insertion cycles
- 500
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 5713140022041
- SAP 1000444721
- Code 8240169
Product Documentation
Document preview: HARTING 09150006201 — Data Sheet (OEM)
More from Harting
Harting
Han 10 B Hood Top Entry M20
19300101440
Harting
Ha-VIS eCon 3021BT-AD
24030021100
Harting
Han-Eco 10B-HCC-WITH DL-M25-GLANDED
19431100736
Harting
Han D 7 Pos. M Insert Crimp
09210073031
Harting
Ha-VIS eCon 3051GBT-AD
24034051100
Harting
RJI 10G/PN plug color-clip yellow
9458500003
Harting
Han 10ES Press - M (09330102648)
Harting
Han 32B-HSE-R-M50 (19300320529)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 09150006201?
- 09150006201 can be ordered from cballast.com as a Harting catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Harting product?
- The manufacturer part number is 09150006201.
- What is the HS code for 09150006201?
- The customs tariff (HS) code for 09150006201 is 8536.69.
- Who manufactures 09150006201?
- 09150006201 is a Harting product in the Electrical Components range.
- Is a datasheet available for 09150006201?
- Yes — the 09150006201 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 09150006201?
- The minimum order quantity is 1.
- Is 09150006201 available?
- Yes — 09150006201 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
