Han 32B-HSE-R-M50 (19300320529)
Pricing
Request a quote
We reply within 24 hours
Product Description

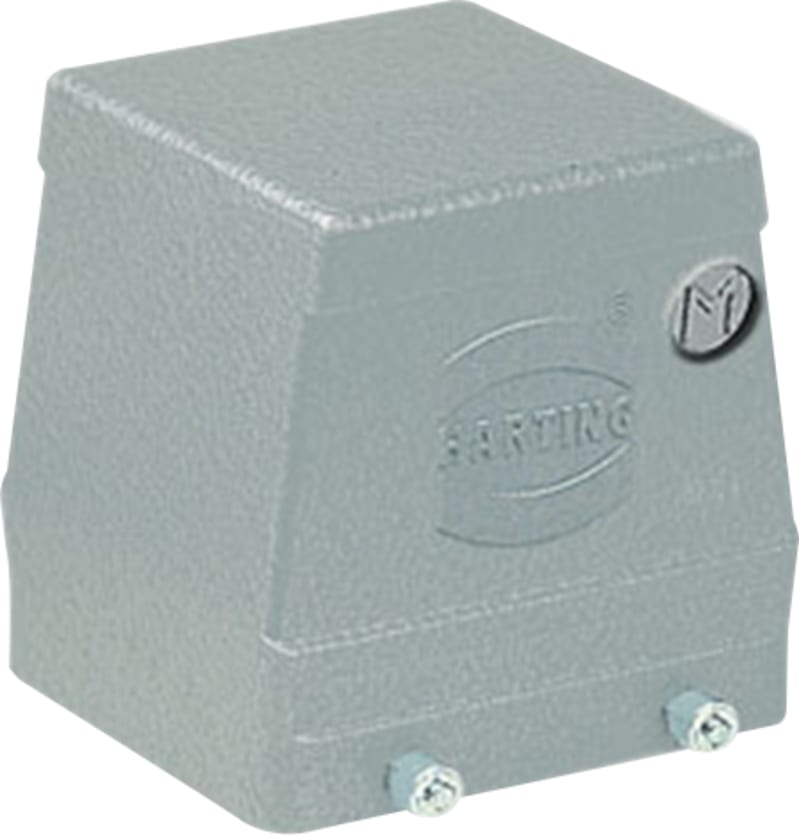

Harting 19300320529 Manufacturer description: Hood; Size: 32 B; High construction; Double locking lever; Side entry; 1x M50; Material (hood/housing): Aluminium die-cast; Powder-coated; RAL 7037 (dust grey). Han 32B-HSE-R-M50.
Technical Specifications
- Manufacturer part number (MPN)
- 19300320529
- EAN / GTIN
- 5713140127425
- HS code
- 8544.42
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han® B
- Type of hood/housing
- Hood
- Type
- High construction
- Locking type
- Double locking lever
- Size
- 32 B
- Version
- Side entry
- Number of cable entries
- 1
- Cable entry
- 1x M50
- Field of application
- Standard hoods/housings for industrial connectors
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Mating cycles
- 500
- Degree of protection acc. to IEC 60529
- IP65
- Type rating acc. to UL 50 / UL 50E
- 4 | 4X | 12
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R1 (HL 1-3) | R7 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Nickel
- Material (hood/housing)
- Aluminium die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- RAL 7037 (dust grey)
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076
- Approvals
- CE | DNV GL
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 447 g
- Country of origin
- Germany
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 5713140127425
- SAP 1000113846
- Code 8611825
Product Documentation
More from Harting
Harting
Ha-VIS eCon 3021BT-AF
24030021200
Harting
Ha-VIS eCon 3082BT-AD
24030082100
Harting
Han C axial module, female 6-10mm²
09140032702
Harting
Jumper Along 1X8 blue 16A
09330009847
Harting
Han D R15 pin-c 2,5 mm Ag
09150006106
Harting
Ha-VIS eCon 3041GBT-AF-PP
24035041220
Harting
Han hinged frame plus, for 3 modules A-C (09140100361)
Harting
Han D female contact-c 1mm² (Ag)
09150006202
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 19300320529?
- 19300320529 can be ordered from cballast.com as a Harting catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Harting product?
- The manufacturer part number is 19300320529.
- What is the HS code for 19300320529?
- The customs tariff (HS) code for 19300320529 is 8544.42.
- Who manufactures 19300320529?
- 19300320529 is a Harting product in the Electrical Components range.
- Is a datasheet available for 19300320529?
- Yes — the 19300320529 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 19300320529?
- The minimum order quantity is 1.
- Is 19300320529 available?
- Yes — 19300320529 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
