Product Description

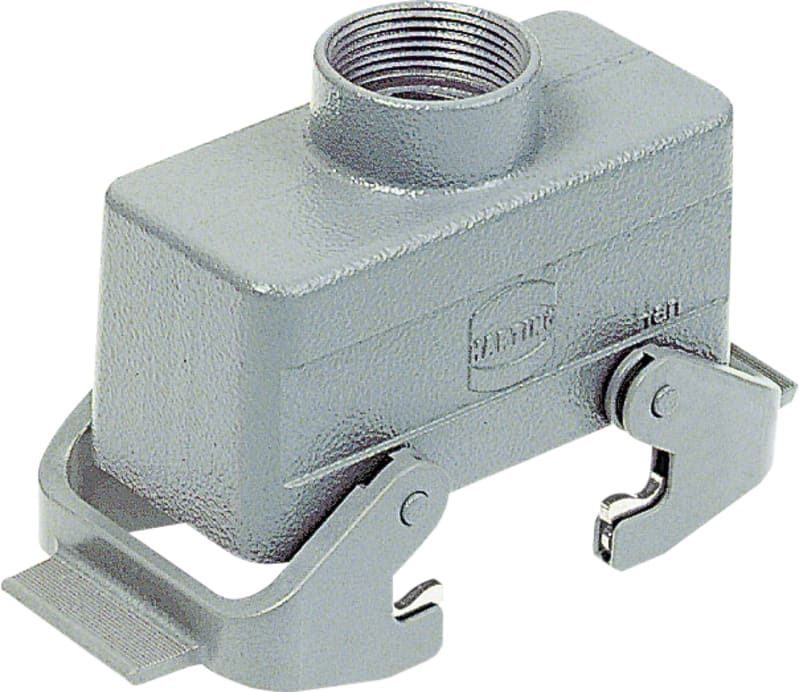

Harting 19300240738 Manufacturer description: Cable to cable housing; Size: 24 B; High construction; Double locking lever; Polycarbonate (PC), Stainless steel; Top entry; 1x M40; Material (hood/housing): Aluminium die-cast; Powder-coated; RAL 7037 (dust grey); Material (seal): NBR. Han 24B-kg-QB-M40.
Technical Specifications
- Manufacturer part number (MPN)
- 19300240738
- EAN / GTIN
- 5713140127050
- HS code
- 8544.42
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han® B
- Type of hood/housing
- Cable to cable housing
- Type
- High construction
- Locking type
- Double locking lever
- Size
- 24 B
- Version
- Top entry
- Number of cable entries
- 1
- Cable entry
- 1x M40
- Field of application
- Standard hoods/housings for industrial connectors
- Han-Easy Lock®
- Yes
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Mating cycles
- 500
- Degree of protection acc. to IEC 60529
- IP65
- Type rating acc. to UL 50 / UL 50E
- 4 | 4X | 12
- ECHA SCIP number
- 60b1a572-bb3f-476f-9307-b7d1688bd90c
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Yes | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Nickel | Naphthalene
- Material (hood/housing)
- Aluminium die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- RAL 7037 (dust grey)
- Material (seal)
- NBR
- Material (locking)
- Polycarbonate (PC) | Stainless steel
- Colour (locking)
- RAL 7037 (dust grey)
- Material flammability class acc. to UL 94 (locking levers)
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076
- Approvals
- CE | DNV GL
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 250 g
- Country of origin
- Germany
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 5713140127050
- SAP 1000113890
- Code 81058448
Product Documentation
