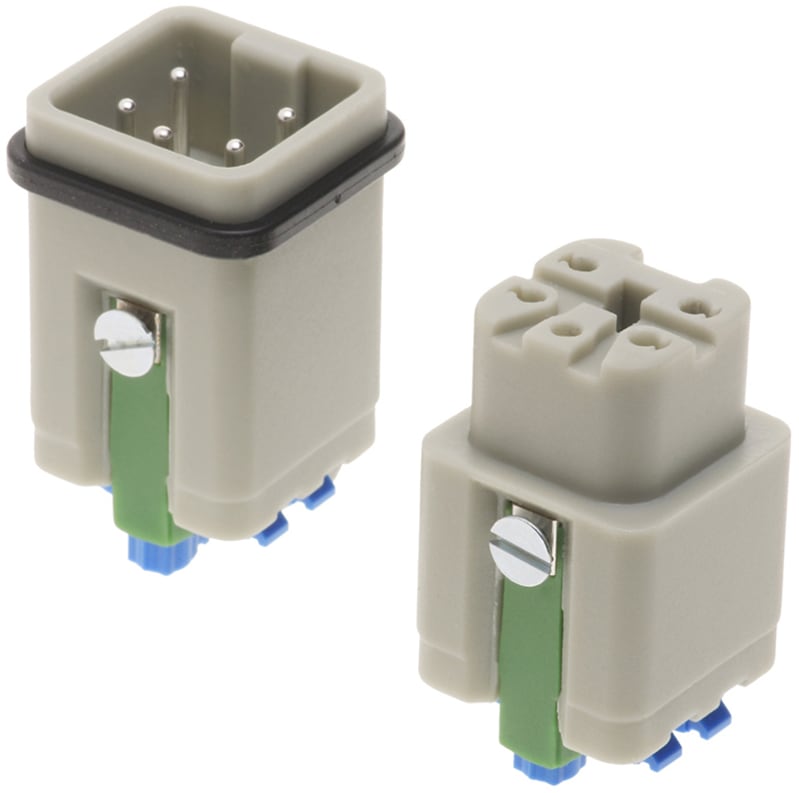

Han 4A-F-QL (09200042733)
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09200042733 Manufacturer description: Inserts; Han-Quick Lock® termination; Female; Polycarbonate (PC); RAL 7032 (pebble grey); Rated current: 10 A; Size: 3 A; Contacts: 4; Conductor cross-section: 0.5. 2.5 mm²; Copper alloy; Silver plated. Han A® 3A Plinth insert, Han-Quick Lock®, 4+earth, 10A 230/400V, 0,5mm2 - 2,5mm2.
Technical Specifications
- Manufacturer part number (MPN)
- 09200042733
- EAN / GTIN
- 5713140123724
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Category
- Inserts
- Series
- Han A®
- Termination method
- Han-Quick Lock® termination
- Gender
- Female
- Size
- 3 A
- Number of contacts
- 4
- PE contact
- Yes
- Details
- Blue slide | for stranded wire according to IEC 60228 Class 5
- Conductor cross-section (mm²)
- 0.5 ... 2.5 mm²
- Rated current
- 10 A
- Rated voltage conductor-earth
- 230 V
- Rated voltage conductor-conductor
- 400 V
- Rated impulse voltage
- 4 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 600 V
- Insulation resistance
- >10¹⁰ Ω
- Limiting temperature
- -40 ... +125 °C
- Mating cycles
- 500
- ECHA SCIP number
- 5dbb3851-b94e-4e88-97a1-571845975242
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead | Nickel
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (insert)
- Polycarbonate (PC)
- Colour (insert)
- RAL 7032 (pebble grey)
- Material (contacts)
- Copper alloy
- Surface (contacts)
- Silver plated
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076
- Approvals
- DNV GL
- Specifications
- IEC 60664-1 | IEC 61984
- European customs tariff number
- 85366990
- Packaging size
- 10
- Net weight
- 0.315 g
- Country of origin
- Romania
- eCl@ss
- 27440205 Contact insert for industrial connectors
- ETIM
- EC000438
- UNSPSC 24.0
- 39121522
- Thread type
- None
- Wrench width
- 22 mm
- Hexagon angular dimension
- 24.4 mm
- Suitable for cable diameter
- 5–12 mm
- Surface protection
- Nickel-plated
- Halogen free
- No
- Degree of protection (IP)
- IP68
- With strain relief
- No
- Operating temperature
- -40–100 °C
- Explosion-tested version
- No
- EMC-version
- No
Standards & Compliance
- HS Code
- 8536.90
