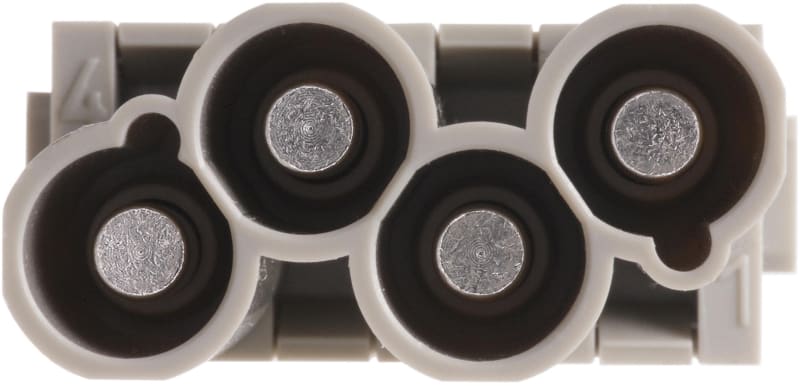

Han CC Protected module, crimp male

Harting 09140043041 Manufacturer description: Han® CC Protected module; Single module; Crimp termination; Male; Contacts: 4; Conductor cross-section: 1.5. 6 mm²; Rated current: 40 A; Polycarbonate (PC); RAL 7032 (pebble grey). Han-Modular®, Plug Han® CC protected module 4-pole, crimp.

Manufacturer part number (MPN)

09140043041

EAN / GTIN

5713140020139

Sales unit

pcs

Package quantity

2 pcs

Category

Modules

Type of module

Han® CC Protected module

Size of the module

Single module

Series

Han-Modular®

Features

Finger safe contacts

Termination method

Crimp termination

Gender

Male

Number of contacts

4

Details

Please order crimp contacts separately.

Conductor cross-section (mm²)

1.5 ... 6 mm²

Wire outer diameter

≤4.8 mm | 4.8 ... 6.4 mm Sstripping length 15 mm, rated voltage 690 V and restricted contact removal

Rated current

40 A

Rated voltage

830 V

Rated impulse voltage

8 kV

Pollution degree

3

Rated voltage acc. to UL

600 V

Insulation resistance

>10¹⁰ Ω

Limiting temperature

-40 ... +125 °C

Mating cycles

10000

Note on the mating cycles

Mating cycles with other HMC components

Fire protection on railway vehicles

EN 45545-2 (2020-08) + A1 (2023-10)

China RoHS

e

RoHS

compliant

REACH SVHC substances

Not contained

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

Requirement set with Hazard Levels

R22 (HL 1-3) | R23 (HL 1-3)

ELV status

compliant

California Proposition 65 substances

Not contained

Material (insert)

Polycarbonate (PC)

Colour (insert)

RAL 7032 (pebble grey)

Material flammability class acc. to UL 94

V-0

UL / CSA

UL 1977 ECBT2.E235076

Approvals

DNV GL

Specifications

IEC 60664-1 | IEC 61984 | IEC 61373 Category 2

European customs tariff number

85389099

Packaging size

2

Net weight

4.59 g

Country of origin

Germany

eCl@ss

27440217 Module for industrial connectors (power/signals)

ETIM

EC000438

UNSPSC 24.0

39121552

Width

15 mm

Height

35 mm

Depth

42 mm

Shape

Rectangular

With wire protection

No

With housing

No

Suitable for distribution board

No

Number of poles

4

Contact type

Pin

Ambient temperature

-40–125 °C

Operating temperature

-40–125 °C

Rated surge voltage

8 kV

Type of electric connection

Crimp connection

Overvoltage category

III

Diameter plug-in contact

4 mm

Contact insert without contacts

Yes

Connectable conductor cross section multi-wired

1.5–6 mm²

With protective conductor

No

Material connector insert

Thermoplastic

Rated current In

40 A

Material of contact insert

Thermoplastic

Min. number of insertion cycles

10000

Number of power contacts

4

HS Code

8536.90

• EAN 5713140020139
• SAP 1000444835
• Code 8129017
