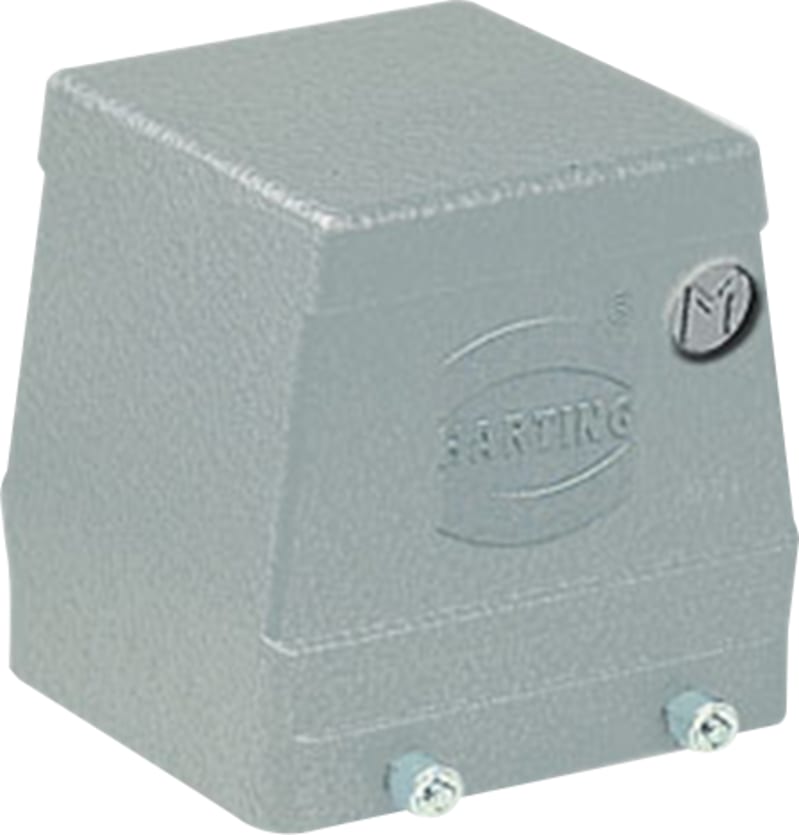

Han B HOOD SIDE Entry M40
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 19300320528 Manufacturer description: Hood; Size: 32 B; High construction; Double locking lever; Side entry; 1x M40; Material (hood/housing): Aluminium die-cast; Powder-coated; RAL 7037 (dust grey). Han B HOOD SIDE ENTRY M40.
Technical Specifications
- Manufacturer part number (MPN)
- 19300320528
- EAN / GTIN
- 5713140127418
- HS code
- 8544.42
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han® B
- Type of hood/housing
- Hood
- Type
- High construction
- Locking type
- Double locking lever
- Size
- 32 B
- Version
- Side entry
- Number of cable entries
- 1
- Cable entry
- 1x M40
- Field of application
- Standard hoods/housings for industrial connectors
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Mating cycles
- 500
- Degree of protection acc. to IEC 60529
- IP65
- Type rating acc. to UL 50 / UL 50E
- 4 | 4X | 12
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R1 (HL 1-3) | R7 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Nickel
- Material (hood/housing)
- Aluminium die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- RAL 7037 (dust grey)
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076
- Approvals
- CE | DNV GL
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 450 g
- Country of origin
- Germany
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 5713140127418
- SAP 1000299904
- Code 8167221
Product Documentation
